Securing Singapore’s historical riverside quay and tourist destination

Heald was approached to provide a solution to secure the historical Clarke Quay in Singapore. Clarke Quay is a historical riverside quay in Singapore, located within the Singapore River Planning Area. Ranking in the Top 50 ‘Things to do in Singapore’ on TripAdvisor, Clarke Quay is home to many restaurants and nightclubs, which attract a high volume of visitors to the area. Therefore, the location needed to be secured from the potential risk of vehicle attacks, whether it be terrorist or theft-related.

Aesthetics of the product were crucial and it was important that any install was not obvious against the surrounding landscape.

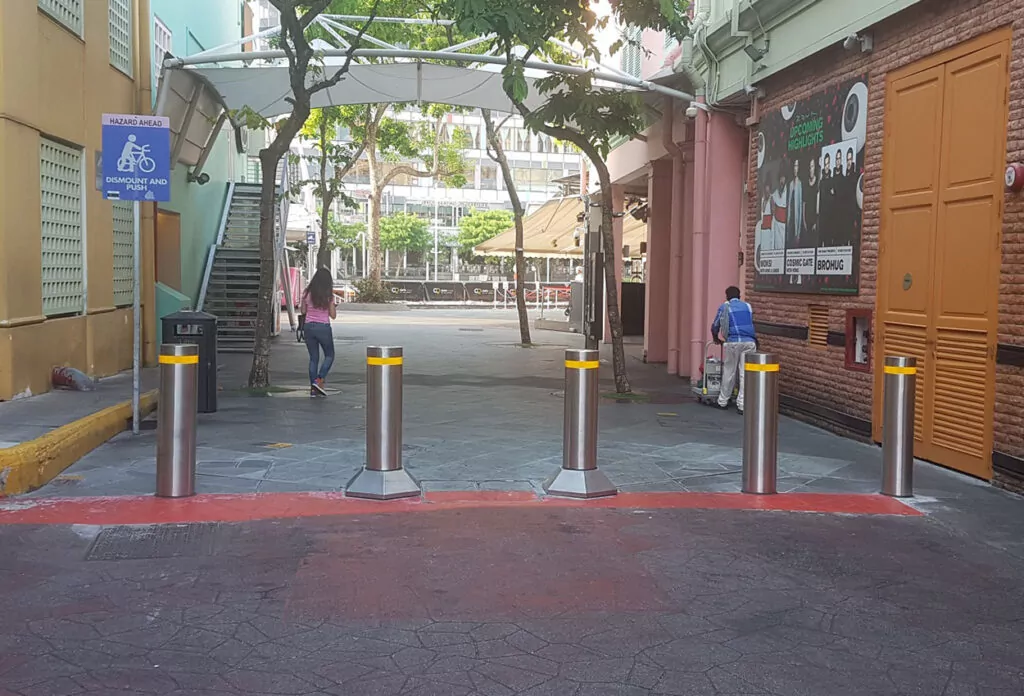

Clarke Quay Singapore Perimeter Security Bollards

Challenges

On site, underground utilities such as gas pipes and electrical lines were close to the surface, which meant options for a security solution which could offer high levels of protection but also provide access to permitted vehicles was limited or would involve costing excavation and re-routing of underground infrastructure.

We identified that a Matador sliding bollard system would be the most suitable solution. Unlike traditional security products, Heald’s Matador range requires a shallow foundation depth of just 110 mm (there is also the option to surface mount the Matador range).

As the Matador was being installed in an area which prides itself on its aesthetics, it was essential that the sliding bollard system seamlessly blended into the location. To enable the bollard system to blend in with its surroundings, Heald supplied the Matador with the Architectural Paving System, which allows the surrounding paving type to be added to the Matador base.

The Outcome

Heald’s Manual Matador 4 was selected as the ideal solution to secure a specific opening size. The Manual Matador 4 is a sliding bollard system which consists of two fixed bollards and two central sliding bollards, easily opened and closed via a mechanical lock.

The Matador is perfect for use in areas where constant pedestrian access is required, as well as offering access to authorised vehicles.

With Heald’s Architectural Paving system installed in conjunction with the Matador, the result was a high level security solution which seamlessly blends into its surroundings. Following the success of this install, further installs are planned for the Clarke Quay area.
