Synergy Expansion Joint

Synergy Expansion Joint

Crash Rated Solution

  • Foundation Depth

    130mm

  • Lateral Movement

    Up to 150mm

Enquire Now View Range
Synergy Expansion Joint

Heald’s Synergy Expansion Joint unit consists of a 5400mm barrier creating a free space of 4000mm between the two bollards as part of the Heald Synergy Bollard System.

Heald’s Synergy Expansion Joint unit was designed to provide capacity for bridge expansion, allowing for lateral movement of up to 150mm. The unique design requires no pinning and no excavation into the carriageway. Alternative barrier lengths are available on request.

Designed as an accessory to work alongside the Synergy Bollard System, and for bridges in particular, the bollard system has been IWA-14 crash tested to halt a 7.2 N3C vehicle (18 tonner) travelling at 48 kph (30 mph). Its unique interlocking design provides shared distribution of the load, while patent protected technology offers additional protection by anchoring the bollards into the ground upon impact.

130mm minimum excavation requirement.

Hot Dip Galvanised Steel Base for ultimate corrosion resistance.

No pre-cast pit or additional rebar required.

Easy installation taking approximately 45 minutes to deploy (excluding civils).

No bolting down.

Modular design enables easy installation and transportation.

Suitable for locations where no excavation is possible.

Variety of finishes available.

No encroachment of the vehicle onto the footway.

Minimal dispersion and debris recorder during test ensuring pedestrian safety.

Bollards continue to provide protection following a crash.

Can act in a flexible array.

Patent Protected.

Bollard designed to allow for bridge expansion joints

Crash tested array of bollards can be extended indefinitely to suit long protection lines.

  • IWA-14 Tested

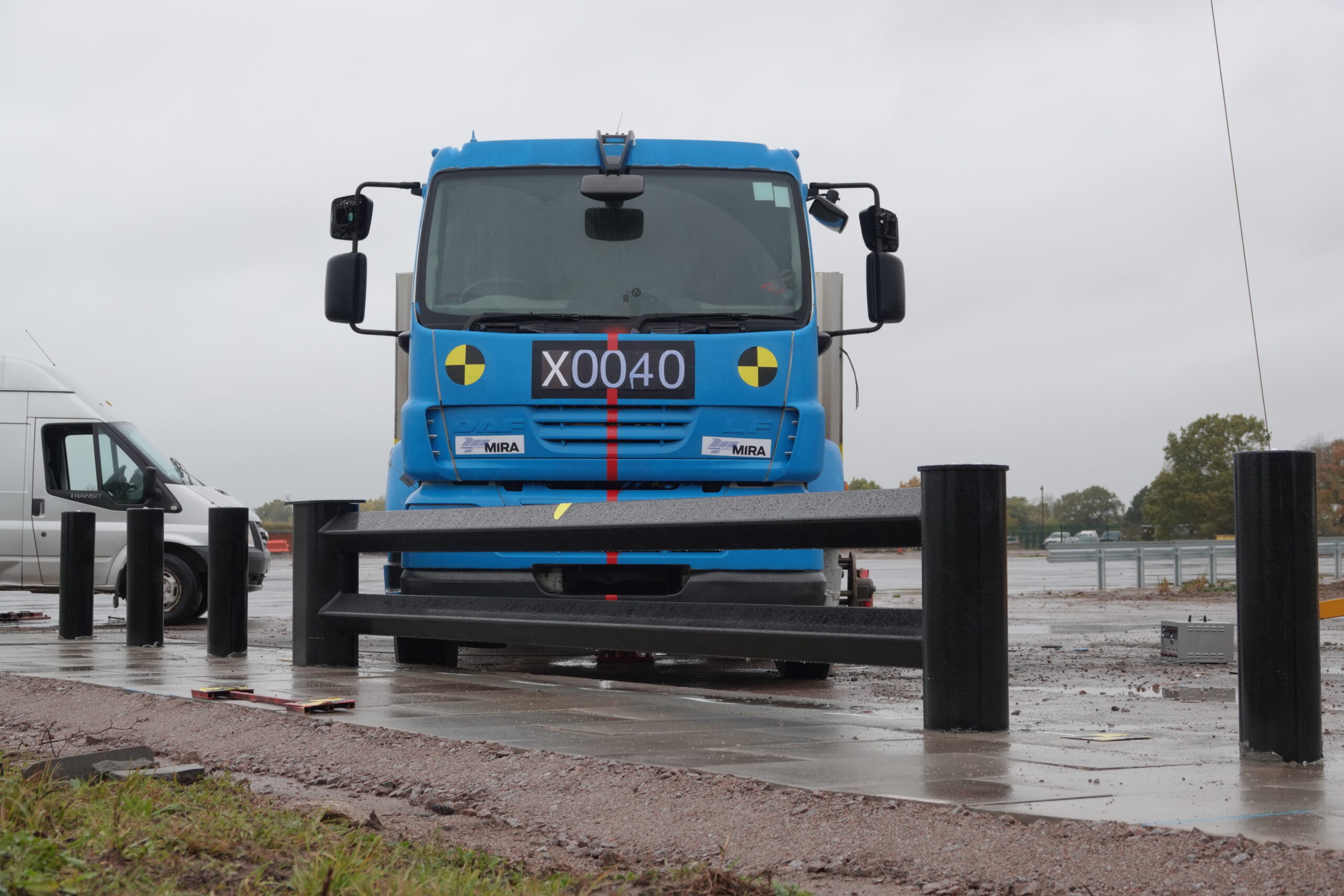

Synergy Expansion Joint Crash Test
Watch Video

Synergy Expansion Joint

  • 7.2 N3C vehicle (18 tonner) travelling at 48 kph (30 mph)

    Bollard Height: 875mm excluding cover

    Bollard Diameter: 220mm excluding covering beam, 273mm circular cover on beam LHS, 273mm pill shape on Beam RHS with 150mm between centres to allow for 75mm lateral movement in either direction.

    Foundation Depth: 130mm

    Options:

    • Galvanised, primed and painted

    Synergy Expansion Joint

    Performance Rating:

    IWA 14-1:2013 Bollard V/7200[N3C]/48/30:0.2

    Data Sheet

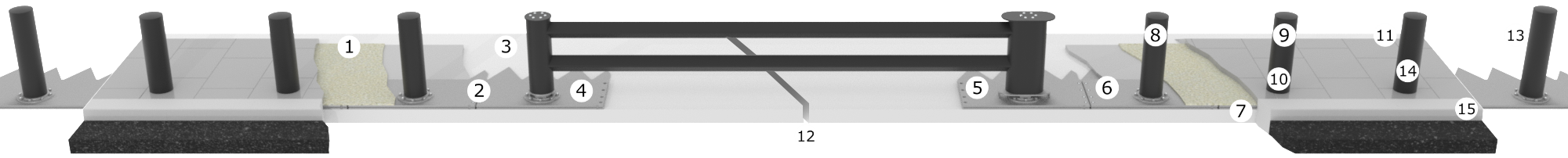

Synergy Expansion Joint USPs

Previous
Next
1.

130mm excavation depth

2.

Hot Dip Galvanised Steel Base for ultimate corrosion resistance

3.

No pre-cast pit or additional rebar required

4.

Easy Installation taking approximately 45 minutes to deploy (excluding civils)

5.

No bolting down

6.

Modular design enables easy installation and transportation

7.

No encroachment of the vehicle onto the footway

8.

Minimal dispersion and debris recorded during test ensuring pedestrian safety

9.

Bollards continue to provide protection following a crash

10.

Can act in a flexible array

11.

Patent Protected

12.

Bollard designed to allow for bridge expansion joints

13.

Crash tested array of bollards can be extended indefinitely to suit long protection lines

14.

Variety of finishes available

15.

Suitable for locations where no excavation is possible
