Sparta

Sparta

Crash-Rated Solution

  • Configuration

    As a single unit or an array

  • Foundation Depth

    600mm

Enquire Now View Range
Sparta

Heald’s Sparta static bollards provide a simple, cost-effective solution for creating robust HVM defensive lines.

Heald’s Sparta Bollards are available in three security levels to protect from impacts at either 48kph (30mph), 64kph (40mph) or 80kph (50mph). Each variant has been tested to PAS68 standards, against a 7.5 tonne truck as an array of 3 bollards with the vehicle impacting on a single bollard, all bollards stayed intact providing continued protection.

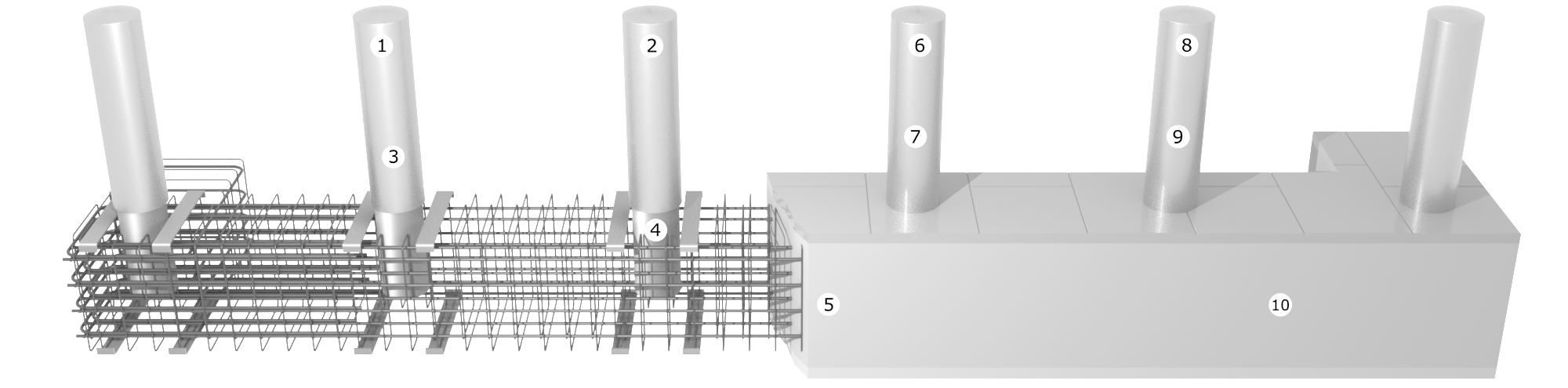

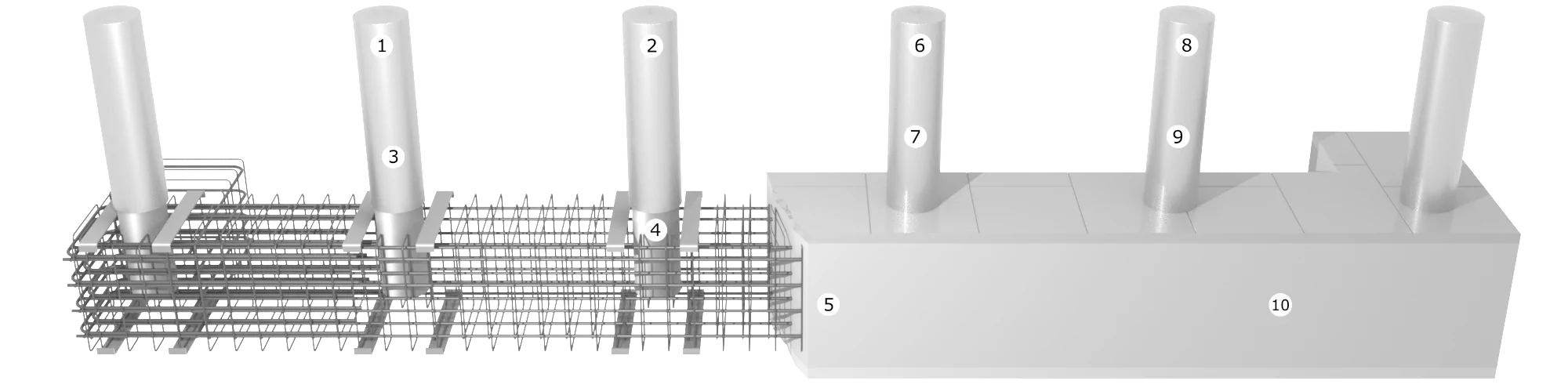

The Sparta bollard has a reinforced foundation that is flexible and adaptable to provide arrays of bollards in a variety of configurations, including around a corner, in a curve or along a slope. The foundation design also allows for the Sparta bollards to be removable if the option is chosen, useful for locations that may require occasional access for parades, larger vehicles, maintenance vehicles and more.

Available with a wide variety of stylish stainless-steel covers to aid integration with modern architecture or more tailor-made cover designs to suit your site requirements.

800mm maximum, 600mm minimum excavation requirement. Although deeper than our shallow mount bollard ranges it still offers a much shallower option than most other bollards on the market.​

Hot Dip Galvanised Steel Base for ultimate corrosion resistance.​

No pre-cast pit required

Can be painted to any colour desired.​

Stainless-steel covers, standard or bespoke designs available.​

Can be used in arrays with other products i.e. Raptors, as a crash rated traffic light or access control post.​

Tested to PAS-68 standards at 3 different speeds, passing all.​

Bollards continue to provide protection following a crash. ​

Steel Construction provides excellent resistance from attack with hand tools.​

Can act in a flexible array

  • PAS 68 Tested

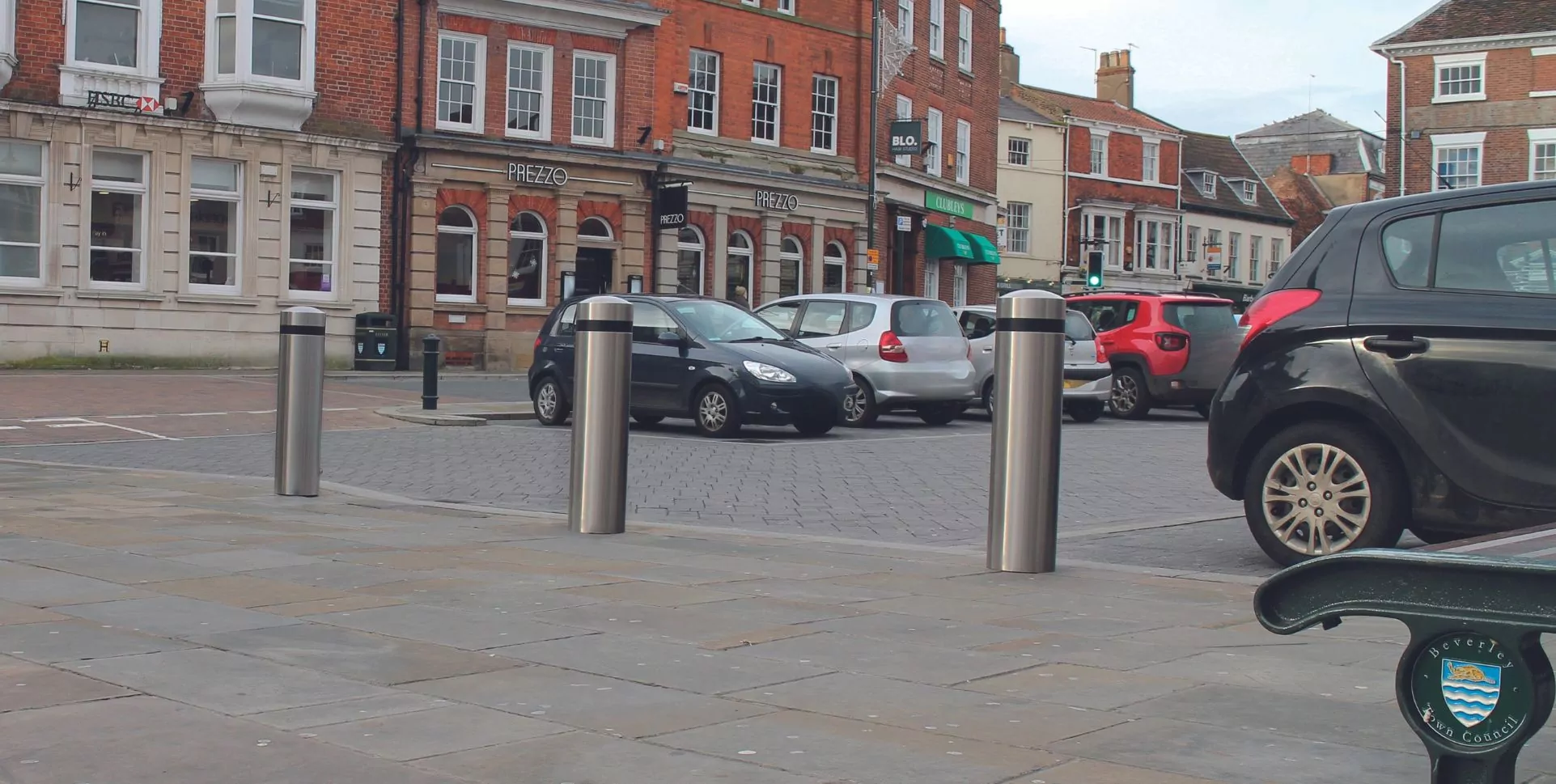

Heald Sparta Beverly Bollard Install

Sparta

  • Sparta 48

    Designed for 7.5T @ 48kph (30mph)

    Bollard Height: 1000mm excluding cover, 1050mm including standard cover

    Bollard Diameter: 220mm excluding cover, 256mm including standard cover

    Foundation Depth: 600mm

    Performance Rating:

    PAS68:Fixed Bollard V/7500[N2]/48/90:0.0/0.0



    Sparta 48

    Options:

    • Galvanised, primed and painted
    • Stainless-steel covers (various cover options available upon request)
    Data Sheet

  • Sparta 64

    Designed for 7.5T @ 64kph (40mph)

    Bollard Height: 1000mm excluding cover, 1050mm including standard cover

    Bollard Diameter: 220mm excluding cover, 256mm including standard cover

    Foundation Depth: 600mm

    Performance Rating:

    PAS68:Fixed Bollard V/7500[N2]/64/90:4.0/16.7

    Options:

    • Galvanised, primed and painted
    • Stainless-steel covers (various cover options available upon request)

    Data Sheet

  • Sparta 80

    Designed for 7.5T @ 80kph (50mph)

    Bollard Height: 1000mm excluding cover, 1050mm including standard cover

    Bollard Diameter: 273mm excluding cover, 306mm including standard cover

    Foundation Depth: 800mm

    Performance Rating:

    PAS68:Fixed Bollard V/7500[N3]/80/90:3.3/18.9

    Options:

    • Galvanised, primed and painted
    • Stainless-steel covers (various cover options available upon request)

    Sparta 80

    Data Sheet

Sparta USPs

Previous
Next
1.

Tested to PAS-68 standards at 3 different speeds, passing all

2.

Bollards continue to provide protection following a crash

3.

Steel Construction provides excellent resistance from attack with hand tools

4.

Hot Dip Galvanised Steel Base for ultimate corrosion resistance

5.

No precast pit required

6.

Can act in a flexible array

7.

Can be painted to any colour desired

8.

Stainless-steel covers, standard or bespoke designs available

9.

Can be used in arrays with other products i.e. Raptors, as a crash rated traffic light or access control post

10.

600mm minimum, 800mm maximum excavation requirement. Although deeper than our shallow mount bollard ranges it still offers a much shallower option than most other bollards on the market
