Removable APEX

Heald’s APEX-64 Removable Bollard, is an evolution of our fixed APEX 64 bollard.

The APEX-64 Removable Bollard was designed to enable simple and fast bollard installation with the additional ability to remove the bollard from locations that may on occasion require access for the likes of parades, large events and larger vehicles.​

The APEX-64 Removable Bollard can be installed in either a straight line or a curved array just like our standard APEX bollard. The modular design of the APEX means that the bollard line can be extended to provide protection along the full perimeter and can also directly connect to Heald’s shallow mount Matador system and EVO bollards. The circular bollard is suitable for a variety of aesthetic finishes and covers, providing a seamless perimeter to both historic and contemporary architecture.​

​Just as easy to install as the standard APEX Bollards, the removable has a deeper excavation depth of 260mm for the main body of the product with an additional small pocket excavation of an additional 105mm to facilitate the bollard socket, totalling a complete excavation of 365mm (request an installation drawing for further details). ​

As with the standard APEX, the APEX-64 Removable Bollard is simply positioned with no pinning required and then secured in place with a concrete back-fill. The surface can be finished with tarmac or pavers to create smooth integration with any landscape.​

Due to the unique design of the APEX bollard, tight curves and 90-degree angles are achievable without any modification to the bollard base.

The bollard is mounted onto the base plate which is elongated to the rear of the product.

Due to this shape, there are two maximum achievable radii for the curvature of the bollard line; this can be either towards or away from the protected area.​

This describes the curve radius with the bollard line contouring towards the protected area within the perimeter.

The minimum achievable radius is 1550mm, whilst maintaining PAS69 recommended 1.2m spacing between bollards.​

This describes the curve radius with the bollard line contouring away from the protected area within the perimeter.

The minimum achievable radius is 800mm, whilst maintaining PAS69 recommended 1.2m spacing between bollards

  • Excavation depth of only 365mm​
  • Hot Dip Galvanised Steel Base for ultimate corrosion resistance.​
  • No pre-cast pit or rebar required.

Removable Bollard ​

Steel Construction provides excellent resistance from attack with hand tools.​

Seamlessly connects to other products such as the Matador and EVO Bollards.​

Modular design means protective line can be continued.​

Curved array, tight curves and 90-degree angles are achievable.​

Installable to slopes of 6.85 degrees (12%, 1:8 Gradient).

Enables seamless integration with existing ground finishes.​

Wide range of Bollard Shrouds available – bespoke options available on r

Apex

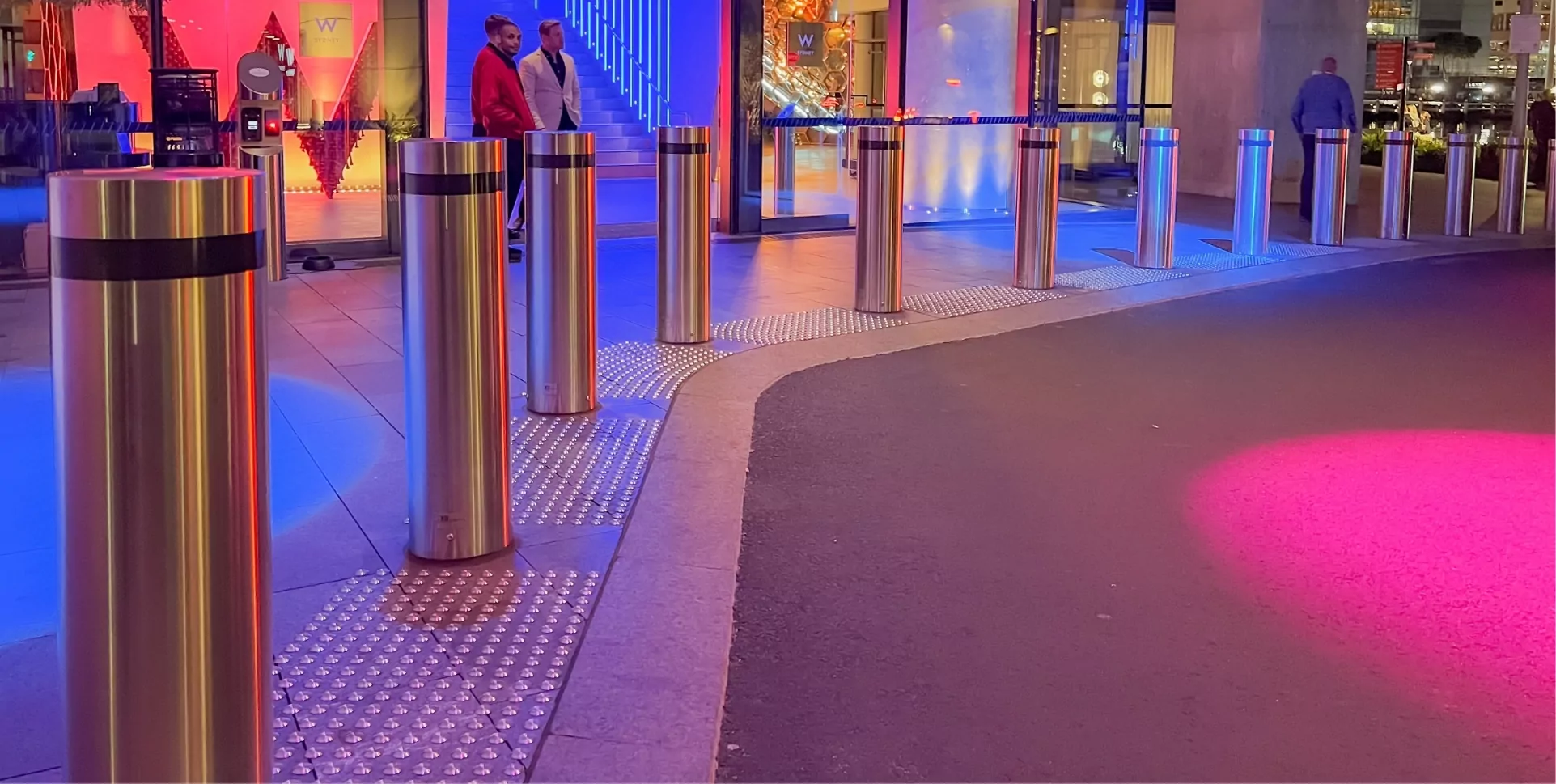

W Hotels – Australia

Apex & Matador

Australia

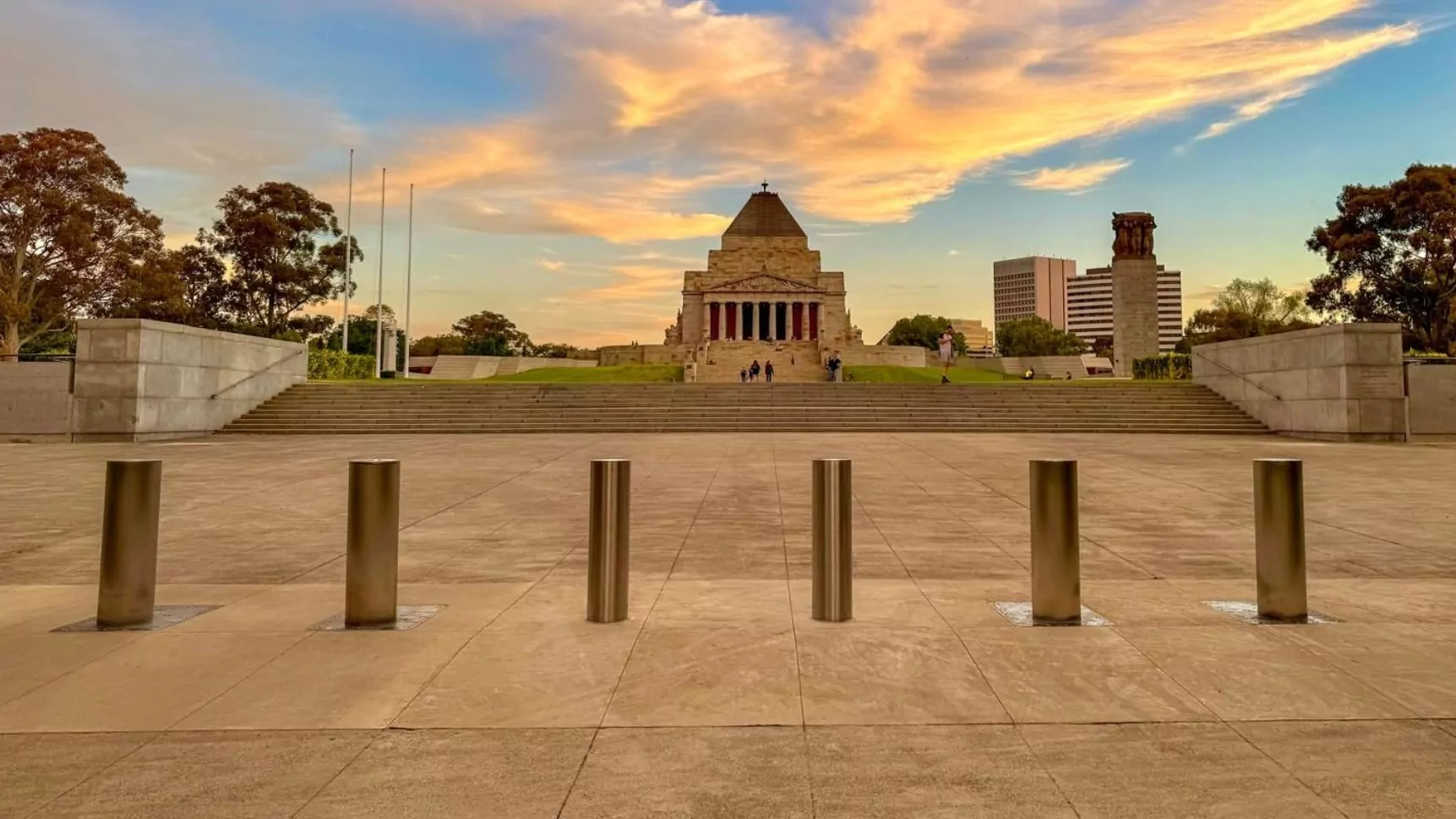

Apex & Evo

Australia

APEX-64 Removable Range

  • Designed for 7.2T @ 64kph (40mph)

    Bollard Height: 960mm AFFL (1060mm with Standard Stainless-Steel Covers)​

    Bollard Core Diameter: 220mm

    Options: ​

    • Wide Range of Bollard Shrouds ​
    • Cranked connecting plate allowing for greater degrees of installation angle compared to the standard connecting plate.

    APEX-64 Removable

    • Excavation depth of only 365mm​
    • Hot Dip Galvanised Steel Base for ultimate corrosion resistance.​
    • No pre-cast pit or rebar required.
    Data Sheet

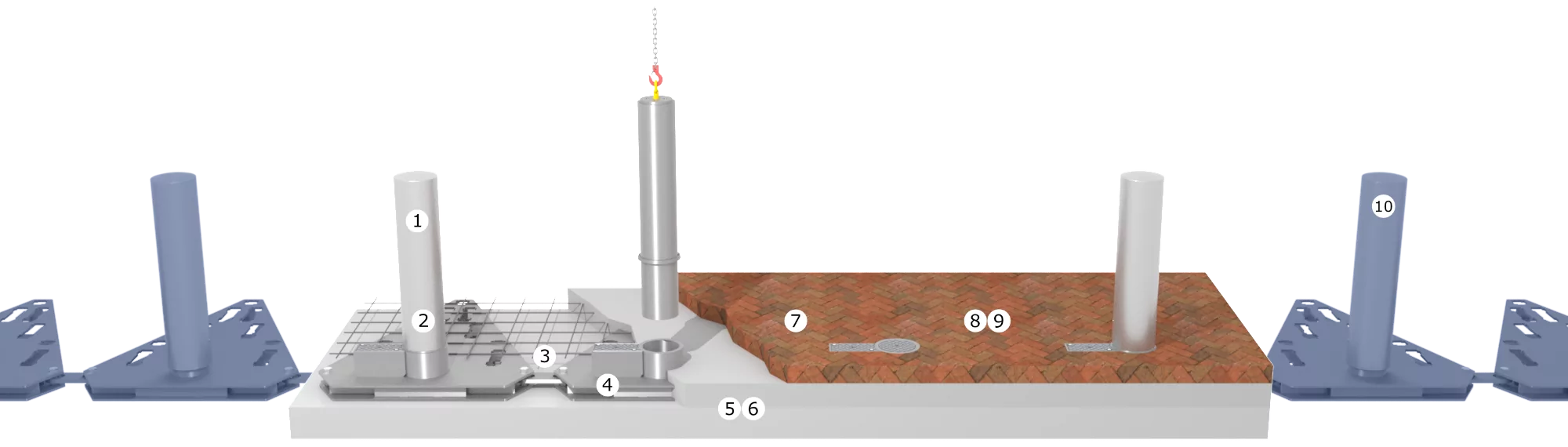

Removable APEX USPs

Previous
Next
1.

Steel construction provides excellent resistance from attack with hand tools​

2.

Wide range of Bollard Shrouds available – bespoke options available on request​

3.

Modular design means protective line can be easily continued​

4.

Hot Dip Galvanised Steel Base for ultimate corrosion resistance​

5.

Excavation depth of only 365mm​

6.

No precast pit required​

7.

Allowance for paving as standard for seamless integration with architectural finishes​

8.

Installable to slopes of 6.85 degrees (12%, 1:8 Gradient) with Cranked Joining Plate (greater angles can be achieved through bespoke plate design)

9.

​Curved array, tight curves and 90-degree angles are achievable​

10.

Seamlessly joins to other products such as the Matador and EVO Bollard
