RBAV Roadblocker

Heald's Anti Vandal Roadblocker is designed to present an imposing security barrier to any would be attackers.

Heald’s Anti-Vandal Roadblocker is available in a range of sizes to provide a highly visible security solution to virtually any location. Raise Heights of the Anti-Vandal Roadblocker range from 340mm up to the imposing 800mm version.

Operated via a single hydraulic cylinder, providing a smooth operation and making servicing and maintenance much easier. As an automated system, the Roadblocker can be integrated with various access control systems to provide quick and convenient access to authorised vehicles and emergency services.

Proven reliability as an installed product and through in-house longevity testing.

Heald design all their products to be long lasting and enable the easy replacement of serviceable components. We offer support and maintenance packages to all customers to ensure that the consistently high levels of service and protection you expect can be maintained by our specialist team of engineers giving you peace of mind that your security investment is in good hands.

RBAV Roadblocker Range

  • Roadblocker Raise Height Options: 340mm, 540mm, 650mm, 800mm

    Roadblocker Width Options: Available wedge widths of 2.0m, 2.6m, 3.0m, 3.6m, 4.0m, 4.6m, 5.0m, 5.6m, 6.0m

    (4000 mm; will secure an opening of up to 6400 mm)

    Operating Speed: 2 – 5 seconds dependent on model.

    Axle Loadings: Will withstand any road going vehicle (In-house test certified) – 20-tonnes per Axle (120-tonnes for a 6-Axle Truck)

    Options:

    • Emergency Fast Operation (EFO)
    • Wide range of colours available
    • Hydra Control
    • Large size LED lights
    • Synthetic Oil
    • Lockable inspection cover
    • High security lock-out valves
    Heald Anti Vandal Road Blocker Product Image

    RBAV Roadblocker

    Data Sheet

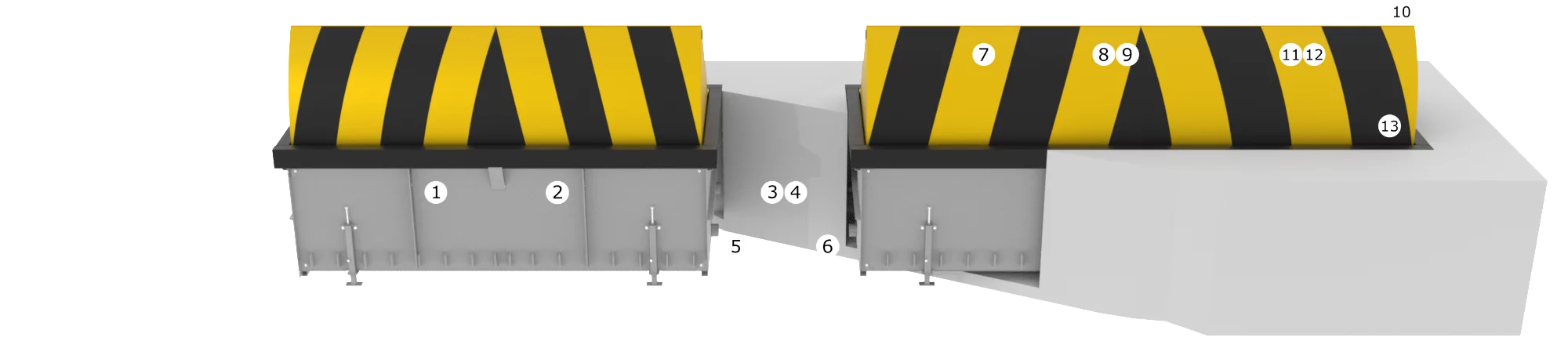

RBAV Roadblocker USPs

Previous
Next
1.

Hot Dip Galvanised Steel Base for ultimate corrosion resistance

2.

Steel Construction provides excellent resistance from attack with hand tools

3.

Unique design means no precast pit or additional rebar is required, making installation as simple and efficient as possible

4.

There is also no need for steel reinforcement in the concrete before fitting

5.

Various ducting connection points for flexibility when positioning duct runs

6.

Multiple drainage points to enable easy connection to local surface drainage

7.

Variety of different widths available to secure any size perimeter opening

8.

Very safe operation being fully raised using EFO (Emergency Fast Operation) between 1.5 seconds approx.

9.

99.5% Uptime

10.

Can act in a flexible array coupled with Heald’s Hydra system

11.

Can be painted to any colour, solid or patterned as desired to suit your site requirements

12.

Easy access for maintenance through top access hatch

13.

Low maintenance requirements due to unique design
