PAS68 Roadblocker

PAS68 Roadblocker

Crash-Rated Solution

  • Foundation Depth

    From 1160mm

  • Configuration

    Available as a single unit or an array

Enquire Now View Range
PAS68 Roadblocker

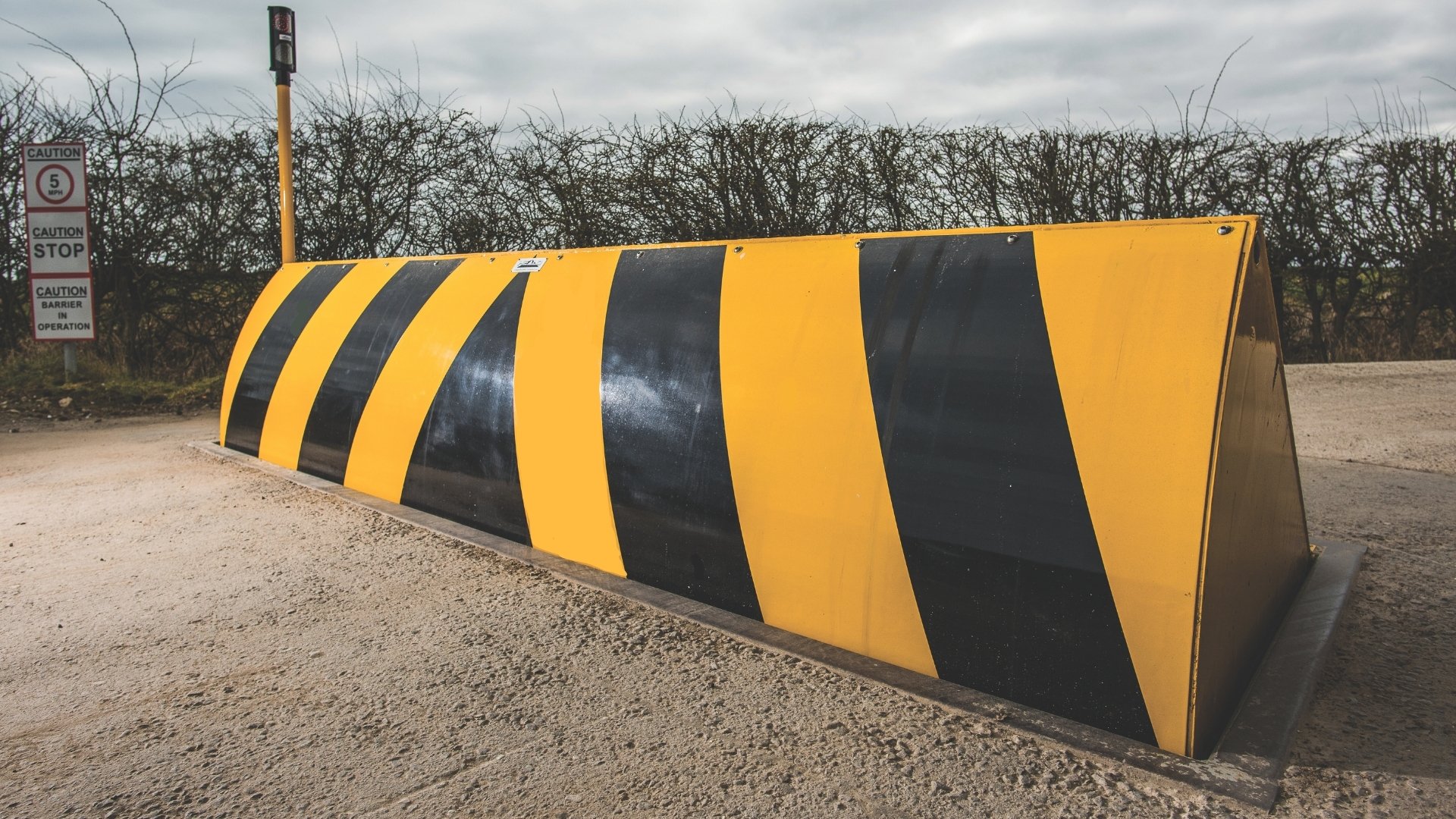

Heald’s PAS68 Roadblockers are the perfect solution for security installations where a crash-rated, high-profile deterrent is required.

Available in two different heights to create an imposing barrier when fully raised, they stand at 880mm or 1200mm above finished floor level dependent on the model chosen. As standard the Roadblockers come finished with bright yellow and black stripes for high visibility (alternative colours are available).

Crash tested to PAS68 standards with a 7.5-tonne truck travelling at 80kph (50mph) the roadblocker continued to function following impact, ensuring ongoing protection and access for emergency service vehicles. The design of the PAS68 Roadblocker’s sacrificial front radius plate ensures protection of your site after impact.

Operated via a single hydraulic cylinder, this provides a smooth operation and easier service and maintenance than its comparable market competitors, all accessible via a hatch on the wedge top. As an automated system, the Roadblocker can be integrated with various access control systems to provide quick and convenient access to authorised vehicles and emergency services. Also integrable with Heald’s Hydra control system.

For the highest security sites, the Roadblocker is available with Emergency Fast Operation (EFO), to allow the Roadblocker to raise in less than 2 seconds for immediate protection against an imminent threat.

Heald design all their products to be long lasting and enable the easy replacement of serviceable components.

We offer support and maintenance packages to ensure your security investment is expertly maintained by our specialist engineers, giving you lasting peace of mind.

  • PAS 68 Tested

PAS68 Roadblocker

  • PAS68 Roadblocker 880

    7.5T @ 80kph (50mph)

    Roadblocker Raised Height: 880mm

    Roadblocker Width: Available in incremental sizes from 2.0m – 6.0m (6.0m; will secure an opening of up to 8.4m). Drive units will differ dependent on size, contact Heald for technical information.

    Foundation Depth: 1160mm

    Operating Speed: 6 seconds approx. (EFO speed = 1.5 seconds)

    Axle Loadings: Will withstand any road going vehicle (In-house test certified) – 20-tonnes per Axle (120-tonnes for a 6-Axle Truck).

    Options:

    • Emergency Fast Operation (EFO)
    • Wide range of colours available
    • Hydra Control
    • Large size LED lights
    • Synthetic Oil
    • Lockable inspection cover
    • High security lock-out valves

    Performance Ratings:

    PAS68 V/7500[N2]/80/90 : 0/25

    Also N3 tested

    PAS68 Roadblocker

    PAS68 Roadblocker 880

    Data Sheet

  • PAS68 Roadblocker 1200

    7.5T @ 80kph (50mph)

    Roadblocker Raised Height: 1165mm

    Roadblocker Wedge Width: Available in incremental sizes from 2.0m – 6.0m (6.0m; will secure an opening of up to 8.4m). Drive units will differ dependent on size, contact Heald for technical information.

    Foundation Depth: 1480mm

    Operating Speed: 6 seconds approx. (EFO speed = 1.5 seconds).

    Axle Loadings: Will withstand any road going vehicle (In-house test certified) – 20-tonnes per Axle (120-tonnes for a 6-Axle Truck).

    Options:

    • Emergency Fast Operation (EFO)
    • Wide range of colours available
    • Hydra Control
    • Large size LED lights
    • Synthetic Oil
    • Lockable inspection cover
    • High security lock-out valves

    Performance Ratings:

    PAS68: V/7500[N3]/80/90: 0.0/14.3

    DOS K12: UPR/SSI/079/07K12 Certification

    PAS68 Roadblocker

    PAS68 Roadblocker 1200

    Data Sheet

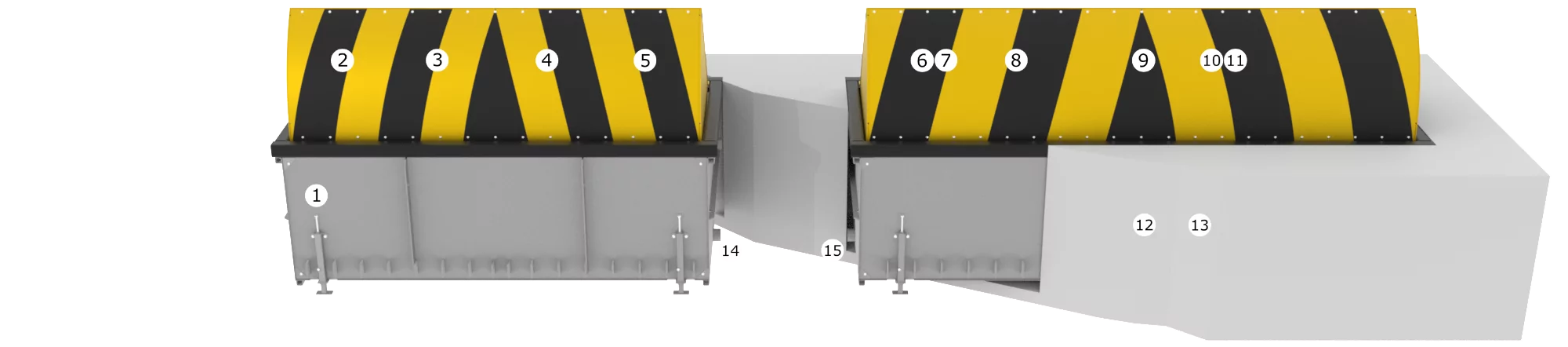

PAS68 Roadblockers USPs

Previous
Next
1.

Hot Dip Galvanised Steel Base for ultimate corrosion resistance

2.

Steel Construction provides excellent resistance from attack with hand tools

3.

Will withstand any road going vehicle (In-house test certified) – 20-tonnes per Axle (120-tonnes for a 6-Axle Truck)

4.

Fully functional after crash test

5.

Variety of different widths available to secure any size perimeter opening

6.

Very safe operation being fully raised using EFO (Emergency Fast Operation) in 1.5 seconds approx.

7.

99.5% Uptime on major high-risk sites

8.

Can act in a flexible array coupled with Heald’s Hydra system

9.

Can be painted to any colour, solid or patterned as desired to suit your site requirements

10.

Easy access for maintenance through top access hatch

11.

Low maintenance requirements due to unique design

12.

Unique design means no precast pit or additional rebar is required, making installation as simple and efficient as possible

13.

There is also no need for steel reinforcement in the concrete before fitting

14.

Various ducting connection points for flexibility when positioning duct runs

15.

Multiple drainage points to enable easy connection to local surface drainage
