Mini Viper

Mini Viper

Security Barrier

  • Configuration

    Available in various widths and heights

  • Customisation

    Wide variety of colours available

Enquire Now View Range
Mini Viper

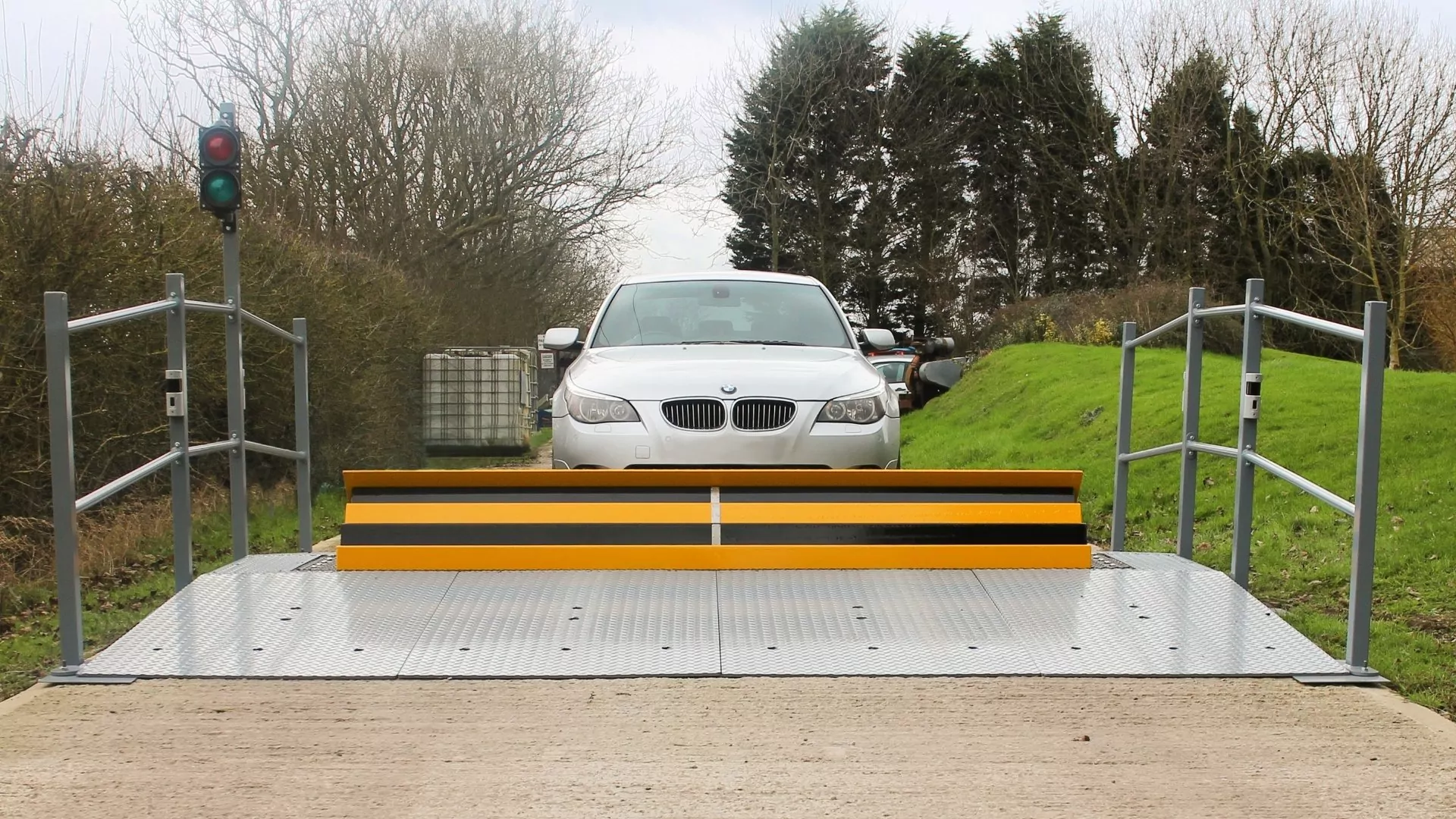

The Mini Viper is an in-ground or surface mount, anti vandal system, offering a flexible security solution for all locations and can be installed as a temporary access control point.

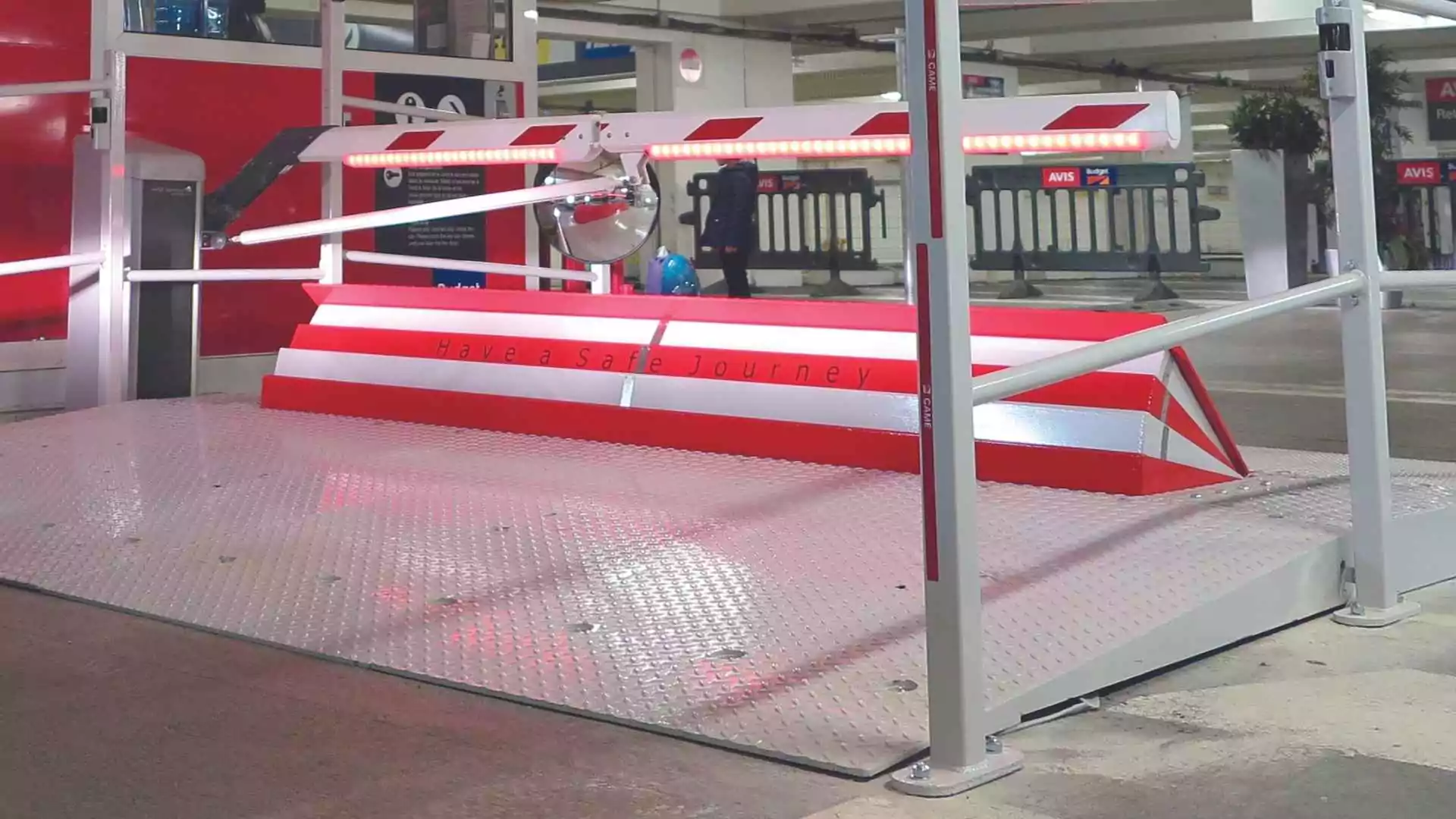

The Mini Viper is ideal for temporary installations in areas where a permanent fixture is not required. Presenting high reliability and easy installation the product can be bolted directly to the ground’s surface or flush mounted with only 110mm excavation or 255mm dependent on the quality of the subbase.

The standard Mini Viper’s blocking element stands at 340mm when raised, however other heights are available. The product can be used for many purposes, ranging from simple traffic control, to acting as an imposing security barrier, deterring potential attackers. Custom colour options are available to ensure full integration with site architecture and surroundings.

Raised and lowered by a remote push-button control system, the Mini Viper is also operational with Heald’s Hydra control and monitoring system which offers unprecedented levels of interaction through a simple, streamlined interface. It can also be supplied with an EFO (Emergency Fast Operation) system where required.

The unique wedge & folding skirt design means the Mini Viper requires a very shallow foundation depth of 110mm.

Designed with operation and safety in mind, the Mini Viper is topped with a Durbar plate to reduce slip or trips of any personnel walking across the product. Additionally, the slotted front plate is movable upon installation minimizing the gap between the rising wedge and base plates.

Protective sacrificial skirts for safety and reliability reduce debris collection and specially designed internal linkage bars ensure hydraulic and electromechanical drive units remain protected in the event on a crash situation.

Heald design all their products to be long lasting and enable the easy replacement of serviceable components. We offer support and maintenance packages to all customers to ensure that the consistently high levels of service and protection you expect can be maintained by our specialist team of engineers giving you peace of mind that your security investment is in good hands.

Mini Viper Range

  • Roadblocker Raised Height: 340mm – 450mm

    Roadblocker Width: Available with a wedge width of 2.0m, 2.6m, 3.0m, 3.6m, 4.0m

    Foundation Depth: N/A if surface mount and sub-base is ‘good’ or 255mm (dependent on model raise height)

    Operating Speed: 3 seconds approx. (1.5seconds with EFO)

    Options:

    • Emergency Fast Operation (EFO)
    • Wide range of colours available
    • Hydra Control
    • LED lights
    • Synthetic Oil

    Mini Viper

    Data Sheet

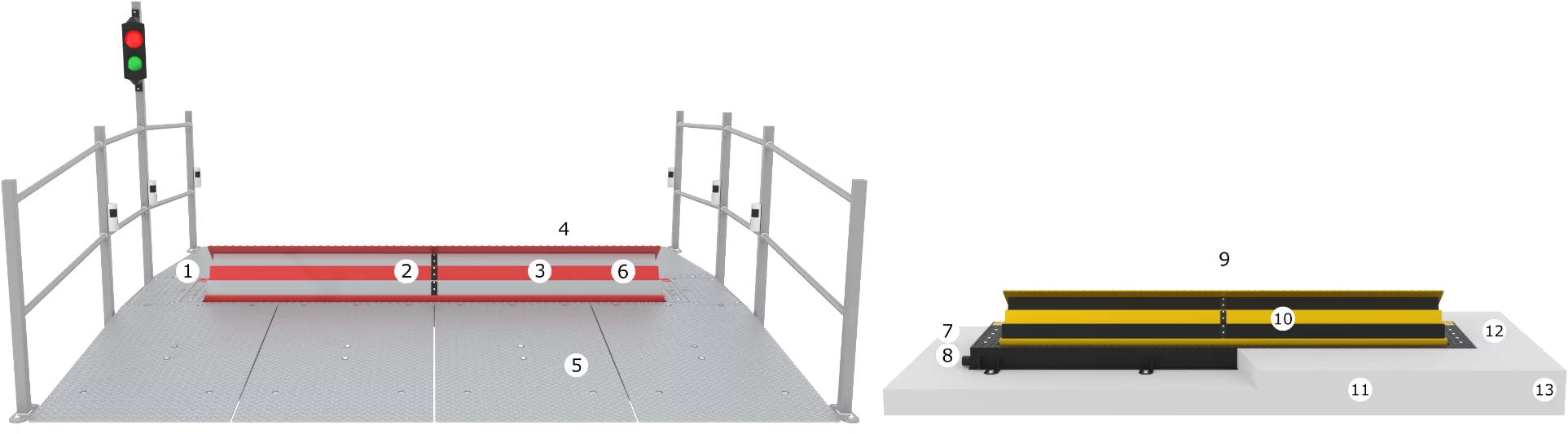

Mini Viper USPs

Previous
Next
1.

Steel construction provides excellent resistance from attack with hand tools

2.

Protective sacrificial skirt for safety and reliability, reduces debris collection

3.

Very safe operation being fully raised using EFO (Emergency Fast Operation) in 1.5 seconds

4.

Can act in a flexible array coupled with Heald’s Hydra system

5.

Available as a temporary surface mount solution with ramps

6.

Can be painted to any colour, solid or patterned as desired to suit your site requirements

7.

Various ducting connection points for flexibility when positioning duct runs

8.

Multiple drainage points to enable easy connection to local surface drainage

9.

Easy access for maintenance due to unique design of the protective skirt. When maintenance is required, the skirt simply sits in the recess of the Mini Viper base, allowing for clear access to Mini Viper internals for engineers

10.

Low maintenance requirements due to unique design

11.

Shallow excavation required for recessed installations

12.

Hot Dip Galvanised Steel Base for ultimate corrosion resistance

13.

No precast pit required
