Matagate

Matagate

Crash-tested gate

  • Installation options

    Surface or Ultra Shallow Mount

  • Customisation

    Available in a range of finishes

Matagate

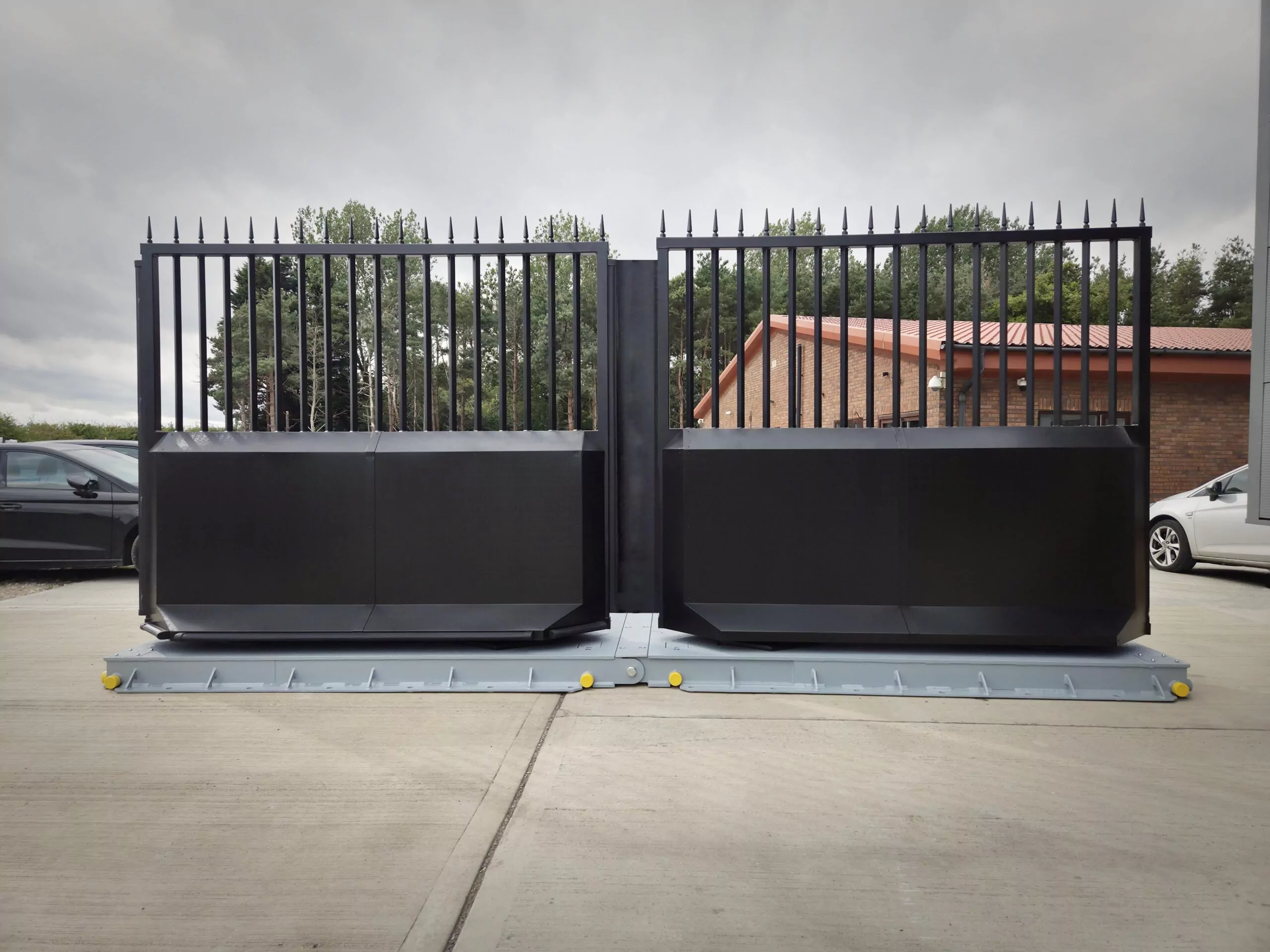

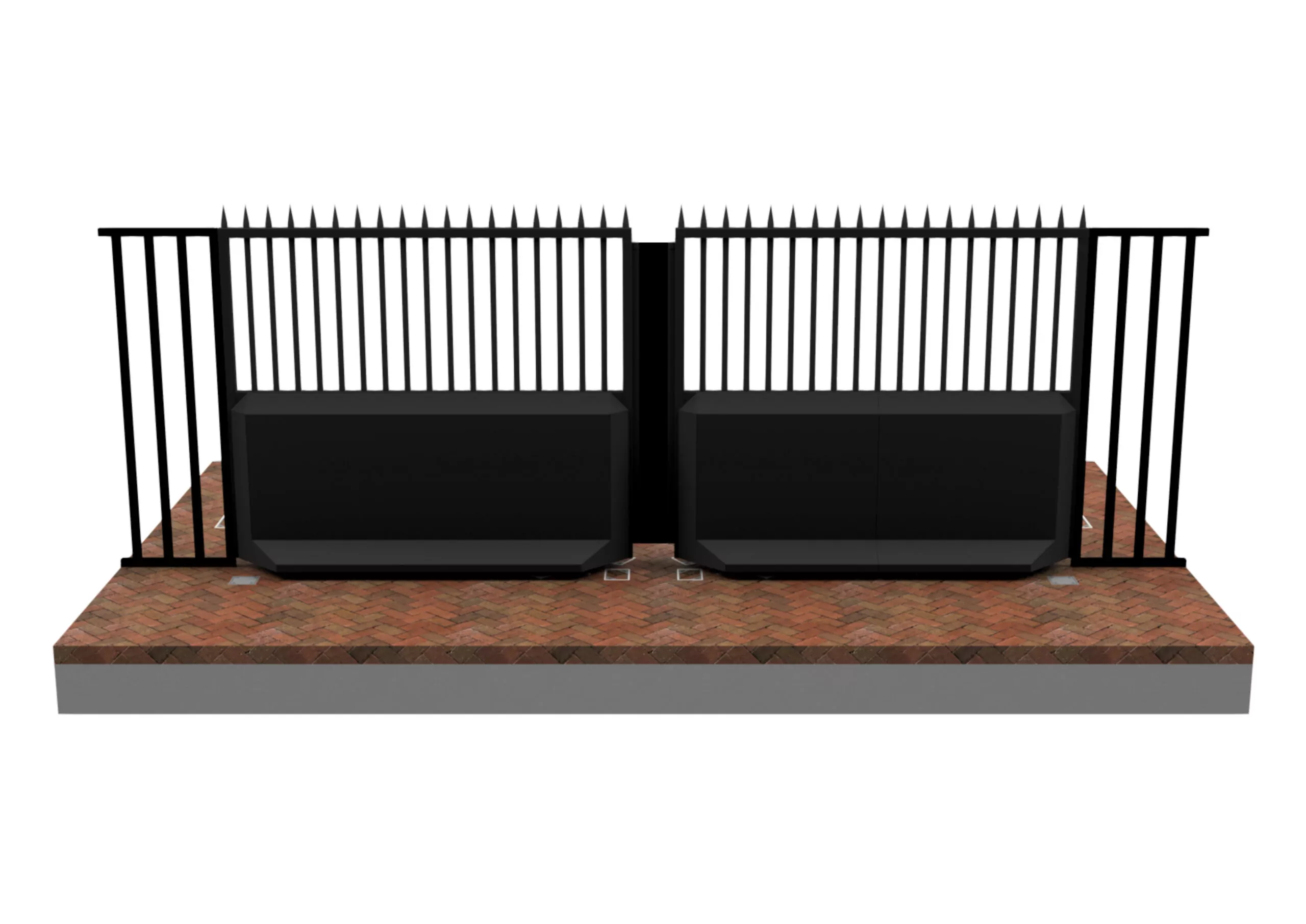

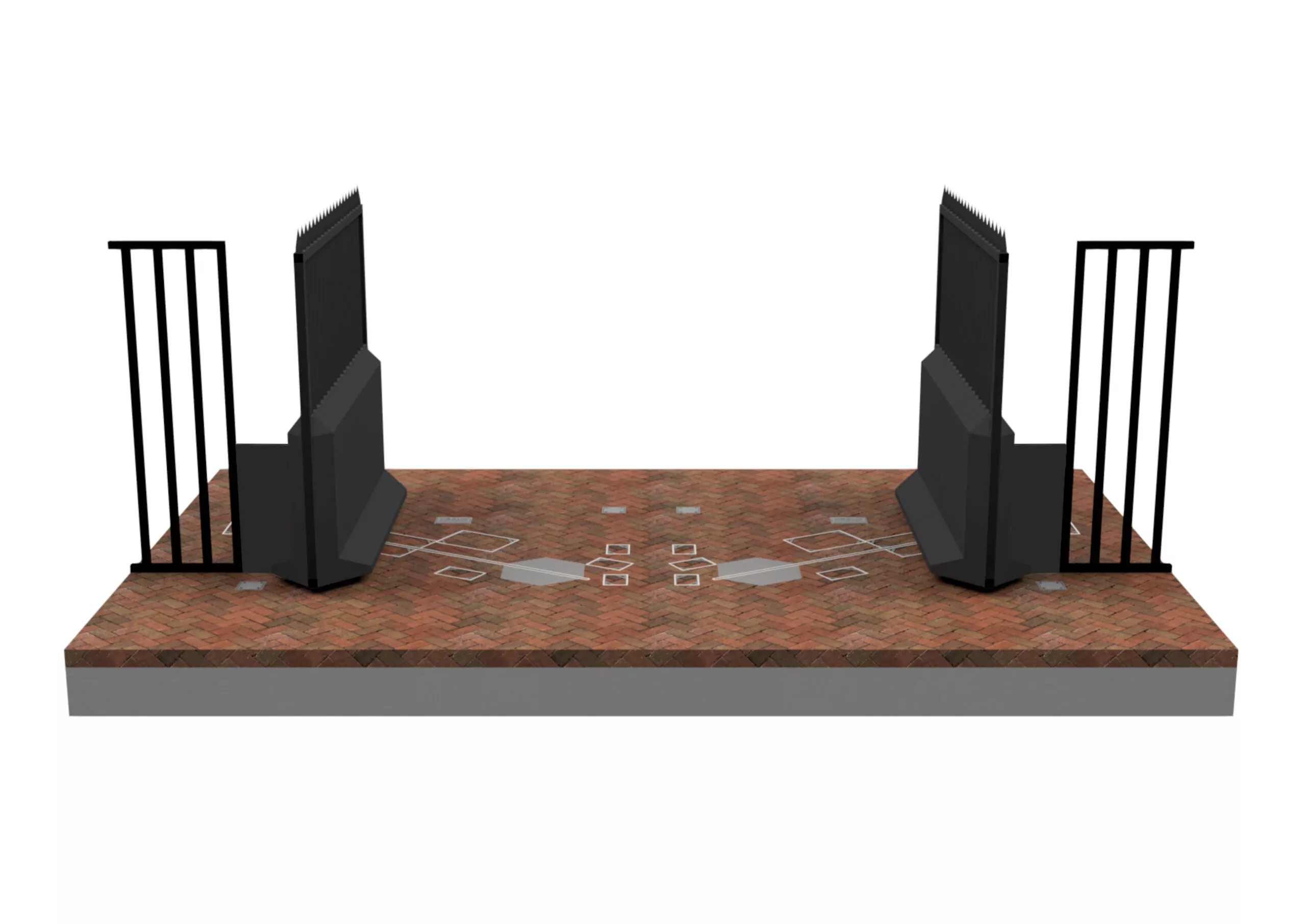

Introducing the Heald Matagate, the latest innovation in gated perimeter security.

Building on the award-winning Matador sliding bollard solution, the Matagate brings an enhanced level of perimeter security providing the benefits of a crash-tested bollard solution, with a gate.

The Matagate offers the only HVM gate solution on the market that provides a surface-mount installation, providing perimeter security in areas where retrofitting such measures might be challenging.

It requires no extensive excavation and pinning, delivering comparable impact protection without these significant installation requirements.

Alternatively, the Matagate allows for ultra-shallow mount installation in locations where excavation is possible, enabling seamless integration with the aesthetics of the surrounding location.

Available in the Matador’s HT2 and HT3 configurations, the Matagate can secure a wide range of sites.



The Matagate can be customised in a range of colours and can incorporate branding across the gate panels or within the metalwork itself.

Depending on your installation you can opt for either a surface mount installation or where excavation is possible, ultra shallow mount allowing for seamless integration with the surrounding aesthetics when combined with our Architectural Paving System (APS)

Watch the Matagate in action
Watch Video

Our Matagate Range

Enquire now

  • HT2

    7.2T @ 40MPH

    Dual tested at 64kph(40mph)

    Continued Operation After Impact

    Options:

    • Emergency Fast Operation (EFO)
    • Architectural Paving System (APS) option for ultra shallow mount install (110mm and 80mm depth APS trays)
    • Wide Range of customisation options available

    Performance Ratings:

    • IWA 14-1: 2013 Bollard V/7200[N2A]/64/90:0.1 (7.2T @ 40mph)

    Patent Applied

    GB2406709.2

    GB2515249.7

    PCT/EP2025/061868

    Data Sheet

  • HT3

    7.2T @ 50MPH

    Dual tested at 64kph(40mph) & 80kph(50mph)

    Continued Operation After Impact

    Options:

    • Emergency Fast Operation (EFO)
    • Architectural Paving System (APS) option for ultra shallow mount install (110mm and 80mm depth APS trays)
    • Wide Range of customisation options available

    Performance Ratings:

    • IWA 14-1:2013 Bollard V/7200[N3C]/64/90:1.3 (7.2T @ 40mph)
    • IWA 14-1:2013 Bollard V/7200[N2A]/80/90:3.2 (7.2T @ 50mph)
    • This product also holds a CPNI Vehicle Attack Delay Standard (VADS) rating

    Patent Applied

    GB2406709.2

    GB2515249.7

    PCT/EP2025/061868

    Data Sheet

Matagate USPs

Matagate USPs
Previous
Next
1.

Enhanced Drainage (supplied as standard) increases the diameter of the drainage duct and lowers the invert level to aid the flow of water through the system.

2.

Debris Collectors (supplied as standard) allow cleaning operations to take place without the need for isolating the electrical system.

3.

Shallow 150mm Reinforced Concrete Foundation with optional Heat Tracing for year-round reliable operation​.

4.

Various ducting connection points for flexibility when positioning duct runs.

5.

Multiple drainage points to enable easy connection to local surface drainage.

6.

Steel construction provides excellent resistance from attack with hand tools.

7.

Hot Dip Galvanised Steel Base for ultimate corrosion resistance with a structure less than 160mm depth with a Durable Anti-slip coating a durable anti-slip coating.

8.

Optional Paving Trays for seamless integration with local architecture. 110mm and 80mm depth APS trays available as standard options (other depths available on request).

9.

Zero Penetration achieved on crash tests and the system continued to function afterwards.

10.

Electromechanical operation is energy efficient, easy to maintain and utilises smaller and quieter roadside cabinets compared to hydraulic systems.

11.

Protective bump strips which halt the gates movement in case of any contact with another object or person(s).

12.

Covers can be replaced in the event of a collision.

13.

Bespoke design available for gate topper.

14.

Colour options available, can be powder coated any colour of your choice.

15.

Available with lighting.
