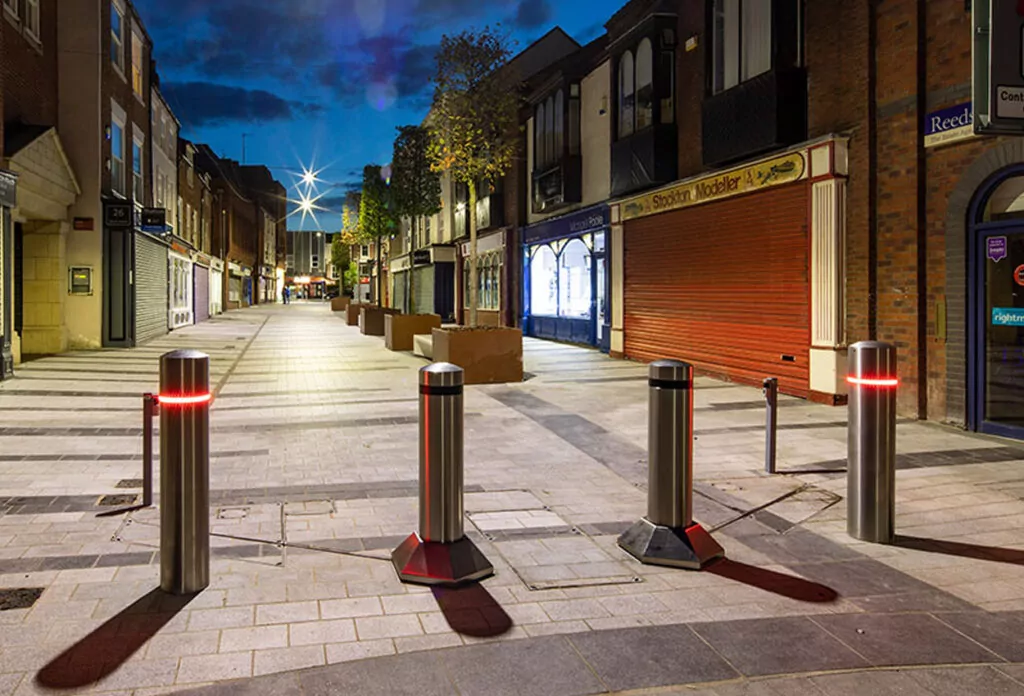

Stockton-on-Tees
To mitigate issues faced with underground infrastructure, Stockton-on-Tees opted for Heald’s Matador to secure three high profile locations within it’s town centre.
Silver Street – Stockton-on-Tees, UK
Matador
Heald’s multi-award-winning sliding bollard system, the Matador, is a patent-protected high-security system crash-tested to various PAS 68 and IWA standards. The Matador has revolutionised the perimeter security industry and has been recognised by numerous innovation awards for its various groundbreaking features.
The Matador system is a flexible shallow-mounted HVM Crash-Rated Bollard solution which is simple and easy to install and seamlessly integrates with Heald’s HVM Static Bollard Range.
Available in two crash resistance classes (see crash rating details below), the Matador has been designed to be installed at sites with congested underground services alleviating the need for expensive diversions and has proved its ability to protect underground utilities, transferring very little downforce during its IWA crash-test. Also, during crash-testing, the sliding bollard system arrested the test vehicle achieving a zero-penetration rating and continued to function following the impact with no repairs required providing reliable protection for both life and infrastructure.
The innovative design of the sliding bollards of the Matador offers excellent pedestrian permeability and because of their sliding motion, the moving bollards are always visible minimising the chance of accidental damage. The Matador also features a completely flat surface when installed as a recessed product, meaning there are no trip or trap hazards, making the system extremely safe for pedestrianised areas.
The system is available with a wide range of options as standard, including Electromechanical or Manual operation, is customisable to suit client preferences, and can be made to bespoke requirements by our talented engineering team to fit installation sites with the most challenging of constraints.
- IWA-14 Tested
- PAS 68 Tested
- VADS Rating Tested

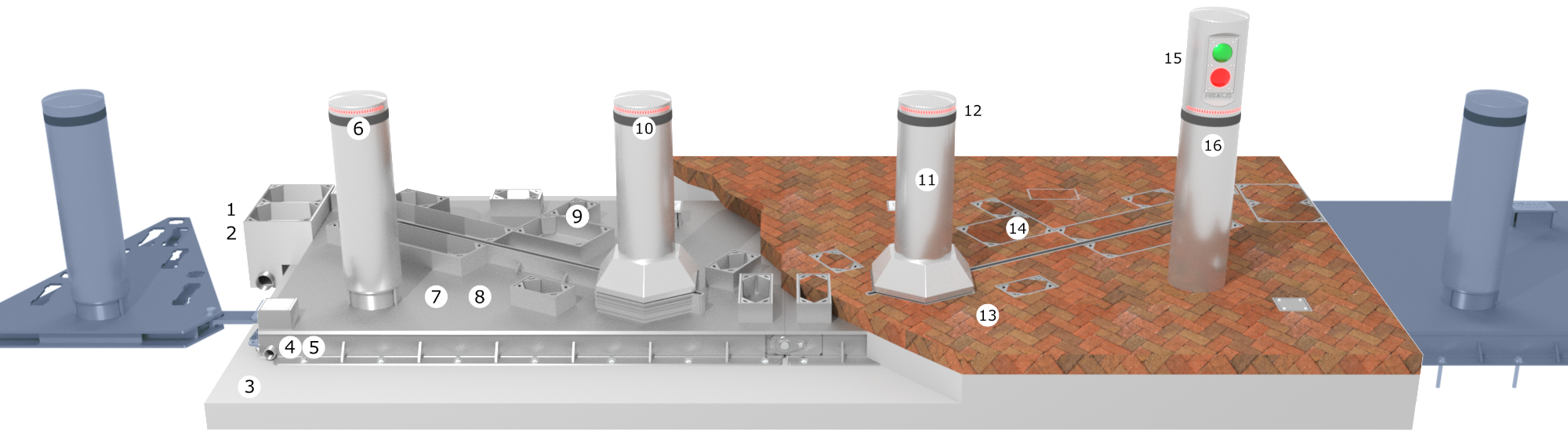

Benefits of the Matador
- Unique sliding bollard operation – a world first!
- Architectural Paving System to blend in seamlessly with built environment
- Shallow and Surface Mount options
- Crash tested to multiple standards
- Variety of cover options available
Our Matador Range
HT2 Matador
7.2T @ 40MPH
Drive: All models available with Electromechanical Drive (battery backup and manual override supplied as standard) or as a Manually Operated version.
Bollard Height: 1030mm (1050mm with Standard Stainless-Steel Covers)
Bollard Core Diameter: 220 mm (256mm with Standard Stainless-Steel Covers)
Foundation Depth: Surface Mounted Matador requires a 150mm deep Concrete Base. Recessing the Matador increases depth by between 155mm to 265mm depending on model chosen.Options:
- Emergency Fast Operation (EFO)
- Architectural Paving System (APS) – 80mm or 110mm depth
- Wide Range of Bollard Shrouds including extended covers with Traffic Lights/Access Control
- Trace Heating
- Hydra Control
Performance Ratings:
- IWA 14-1: 2013 Bollard V/7200[N2A]/64/90:0.1 (7.2T @ 40mph)
- PAS 68:2013 Bollard V/7500(N2)/64/90:0.7/0.0 (7.5T @ 40mph)
Patent Numbers:
- Granted EP patent EP2776631 (GB,FR,SE,NO,NL,IT,DE,TR)
- Granted US Patent US9,315,956
- Granted US Patent US10,119,230
HT2-Mat-EM-3R-155 View Case Study
HT2 Matador, Electromechanically Operated, 3 Bollards (1 Dynamic Bollard opening to the right), 155mm steel base depth
Arrangement: 2 Static Bollards with a single central Dynamic Bollard.
Typical Use Cases: Used to secure entrances where the approach is at 90° to the bollard line (minimal opening aperture required). Securing underground entrances to buildings.
Steel Base Dimensions: 3970 mm length x 2140 mm depth x 155 mm height (+80mm or +110mm if APS is added).
Opening Aperture: 2610mm. Aperture will be slightly reduced if shrouds are fitted. (Value dependant on choice of covers).
Operating Speed: 6 seconds (3 seconds EFO).

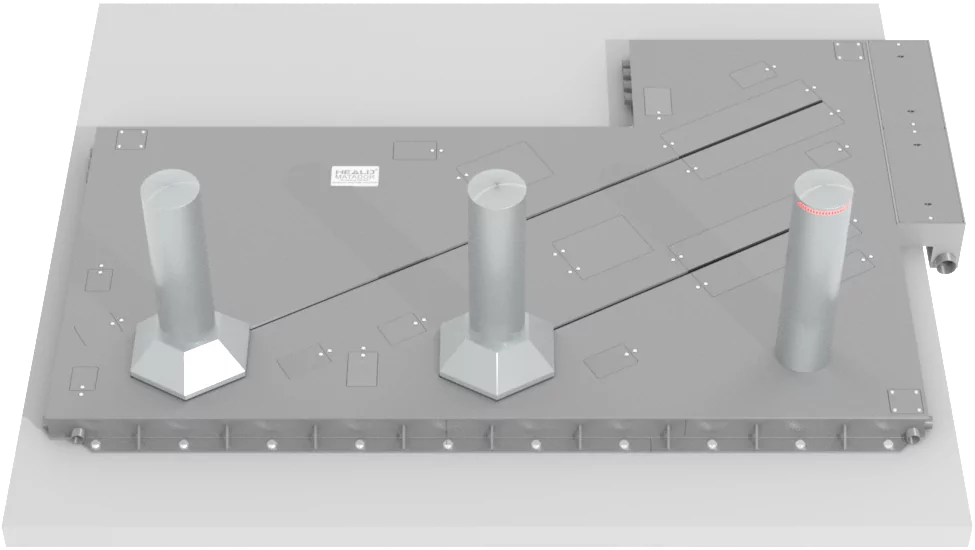

HT2-Mat-EM-3R(2DB)-155
HT2 Matador, Electromechanically Operated, 3 Bollards (2 Dynamic Bollards opening to the right), 155mm steel base depth
Arrangement: 1 Static Bollard with 2 Dynamic Bollards – RH version shown, LH version available. NB: Product is designed to be placed next to another HVM Feature
Typical Use Cases: Used to maximise opening aperture whilst securing an entrance between 2 buildings or an entrance to an area inside the building.
Steel Base Dimensions: 4057.5 mm length x 2680 mm depth x 155 mm height (+80mm or +110mm if APS is added).
Opening Aperture: 4025mm MAX based on 1200mm spacing between outer Dynamic Bollard and other HVM feature e.g. building, etc. Aperture will be slightly reduced if shrouds are fitted. (Value dependant on choice of covers).
Operating Speed: 12 seconds (6 seconds EFO).
HT2-Mat-EM-4-155
HT2 Matador, Electromechanically Operated, 4 Bollards (2 Dynamic Bollards), 155mm steel base depth
Arrangement: 2 Static Bollards with a 2 central Dynamic Bollards.
Typical Use Cases: Used to secure public spaces in city centres where roads are sporadically closed to create pedestrianised areas. Entrances to prestigious buildings.
Steel Base Dimensions: 5385 mm length x 2140 mm depth x 155 mm height (+80mm or +110mm if APS is added).
Opening Aperture: 4025mm. Aperture will be slightly reduced if shrouds are fitted. (Value dependant on choice of covers).
Operating Speed: 6 seconds (3 seconds EFO).

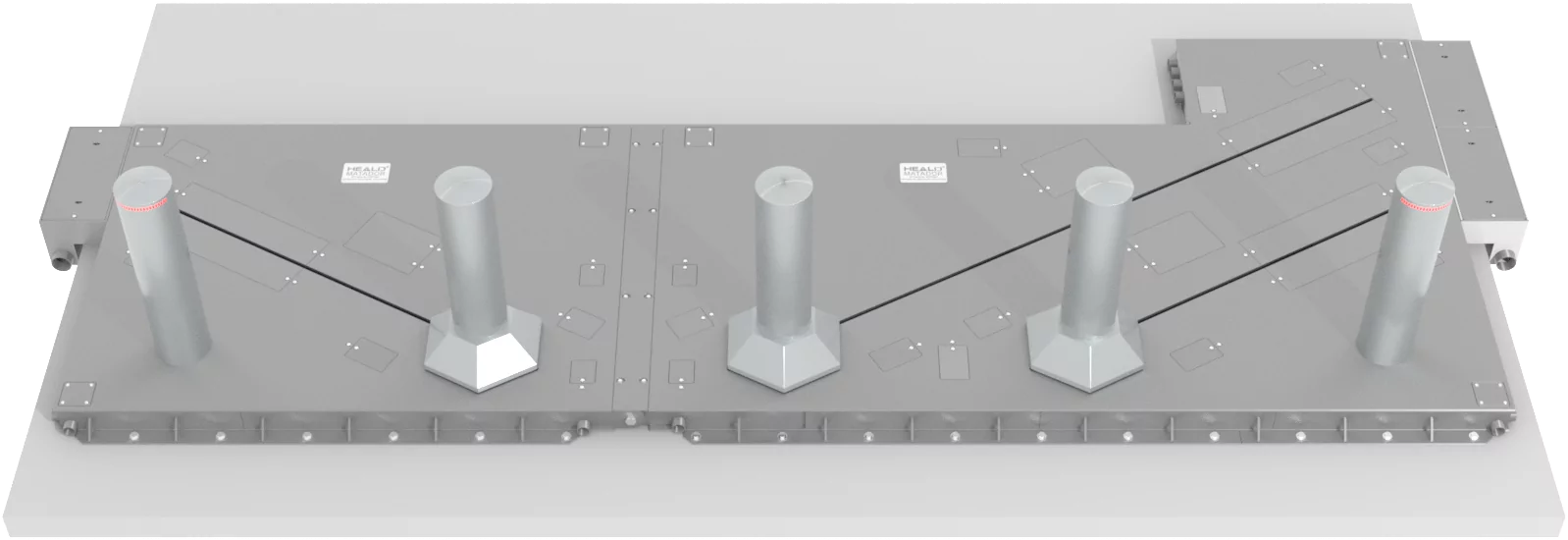

HT2-Mat-EM-5R-155
HT2 Matador, Electromechanically Operated, 5 Bollards (3 Dynamic Bollards 2 opening to the right, 1 to the left), 155mm steel base depth – Available in Left Hand and Manually Operated versions
Arrangement: 2 Static Bollards with 3 central Dynamic Bollards – RH version shown, LH version available.
Typical Use Cases: Used where the approach angle is less than 90° to the bollard line and a wider opening aperture is required.
Steel Base Dimensions: 6810 mm length x 2680 mm depth x 155 mm height (+80mm or +110mm if APS is added).
Opening Aperture: 5440 mm. Aperture will be slightly reduced if shrouds are fitted. (Value dependant on choice of covers).
Operating Speed: 12 seconds (6 seconds EFO).

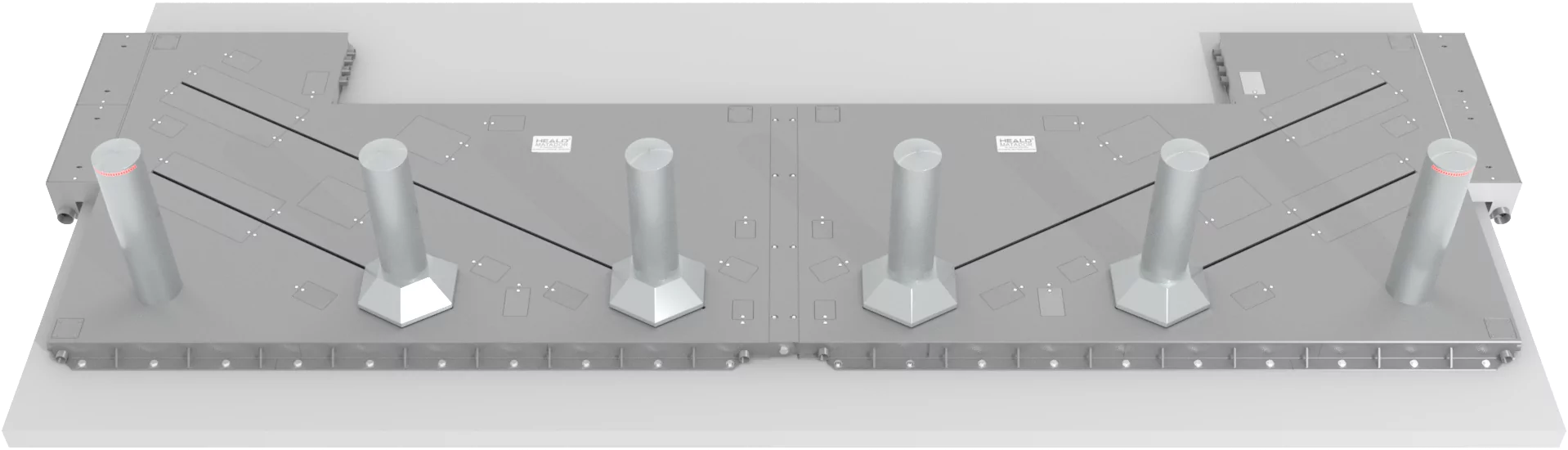

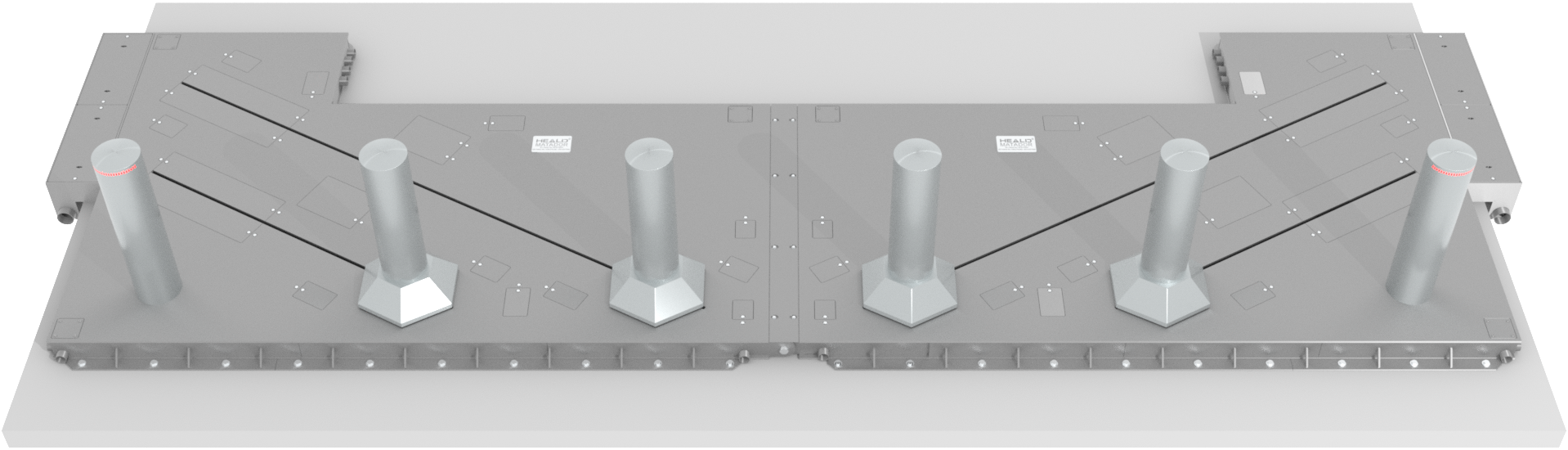

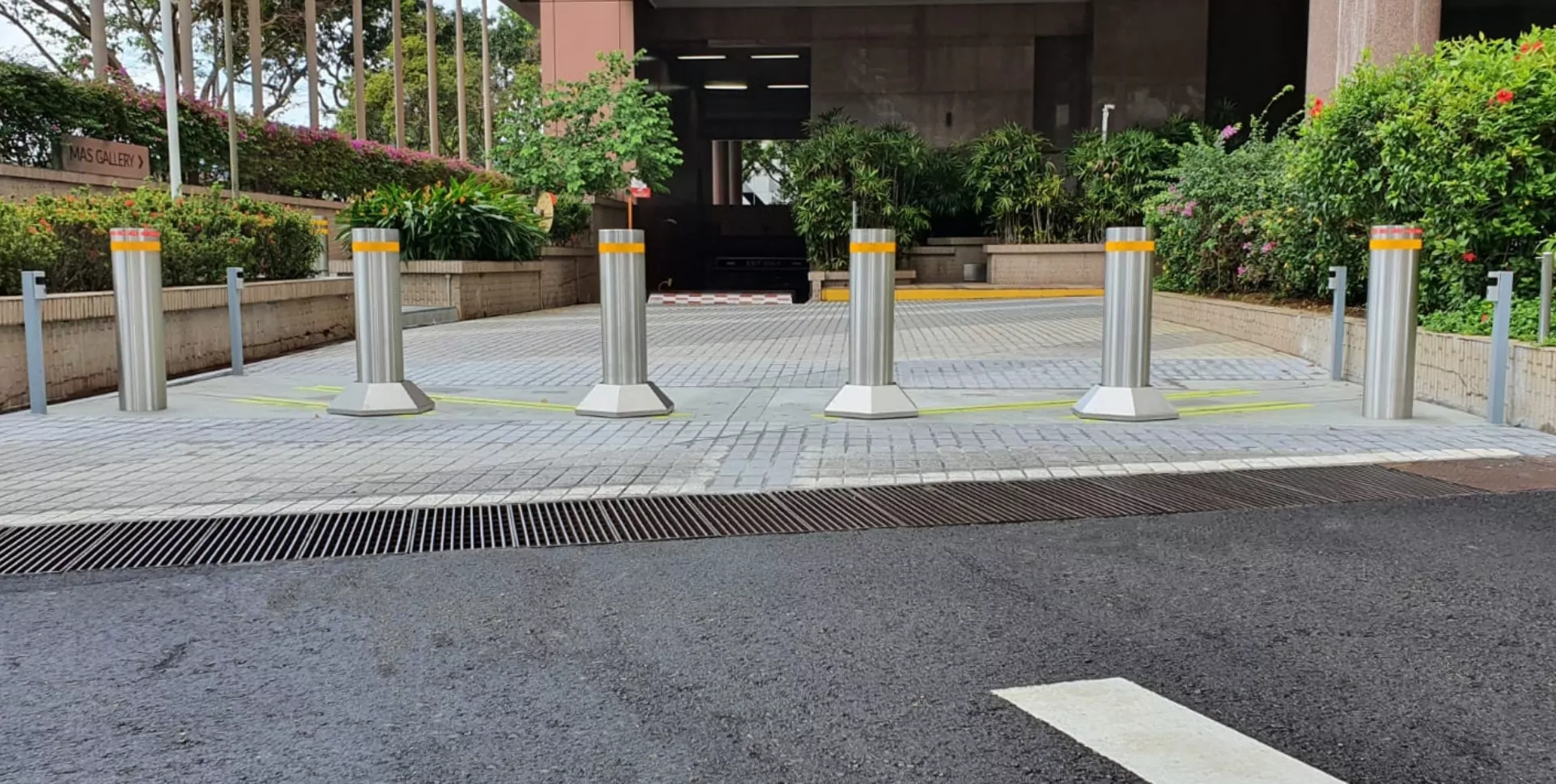

HT2-Mat-EM-6-155
HT2 Matador, Electromechanically Operated, 6 Bollards (4 Dynamic Bollards), 155mm steel base depth – Available as a Manually Operated version
Arrangement: 2 Static Bollards with 4 central Dynamic Bollards.
Typical Use Cases: Used where the widest opening aperture is required (e.g. tight turning circles). Can be supplied with an additional central fixed bollard to provide protection for 2 lanes (e.g. entry and exit lane).
Steel Base Dimensions: 8215 mm length x 2680 mm depth x 155 mm height (+80mm or +110mm if APS is added).
Opening Aperture: 6855 mm. Aperture will be slightly reduced if shrouds are fitted. (Value dependant on choice of covers).
Operating Speed: 12 seconds (6 seconds EFO).HT3 Matador
7.2T @ 50MPH
Drive: All models available with Electromechanical Drive (battery backup and manual override supplied as standard) or as a Manually Operated version.
Bollard Height: 1030mm (1050mm with Standard Stainless-Steel Covers)
Bollard Core Diameter: 273 mm (306mm with Standard Stainless-Steel Covers)
Foundation Depth: Surface Mounted Matador requires a 150mm deep Concrete Base. Recessing the Matador increases depth by between 160mm to 270mm depending on model chosen.Options:
- Emergency Fast Operation (EFO)
- Architectural Paving System (APS) – 80mm or 110mm depth
- Wide Range of Bollard Shrouds including extended covers with Traffic Lights/Access Control
- Trace Heating
- Hydra Control
Performance Ratings:
- IWA 14-1:2013 Bollard V/7200[N3C]/64/90:1.3 (7.2T @ 40mph)
- IWA 14-1:2013 Bollard V/7200[N2A]/80/90:3.2 (7.2T @ 50mph)
- This product also holds a CPNI Vehicle Attack Delay Standard (VADS) rating
Patent Numbers:
- Granted EP patent EP2776631 (GB,FR,SE,NO,NL,IT,DE,TR)
- Granted US Patent US9,315,956
- Granted US Patent US10,119,230
HT3-Mat-EM-3R-160
HT3 Matador, Electromechanically Operated, 3 Bollards (1 Dynamic Bollard opening to the right), 155mm steel base depth
Arrangement: 2 Static Bollards with a single central Dynamic Bollard.
Typical Use Cases: Used to secure entrances where the where the approach is at 90° to the bollard line (minimal opening aperture required). Securing underground entrances to buildings.
Steel Base Dimensions: 4076mm length x 2060mm depth x 160mm height (+80mm or +110mm if APS is added).
Opening Aperture: 2673mm. Aperture will be slightly reduced if shrouds are fitted. (Value dependant on choice of covers).
Operating Speed: 6 seconds (3 seconds EFO).

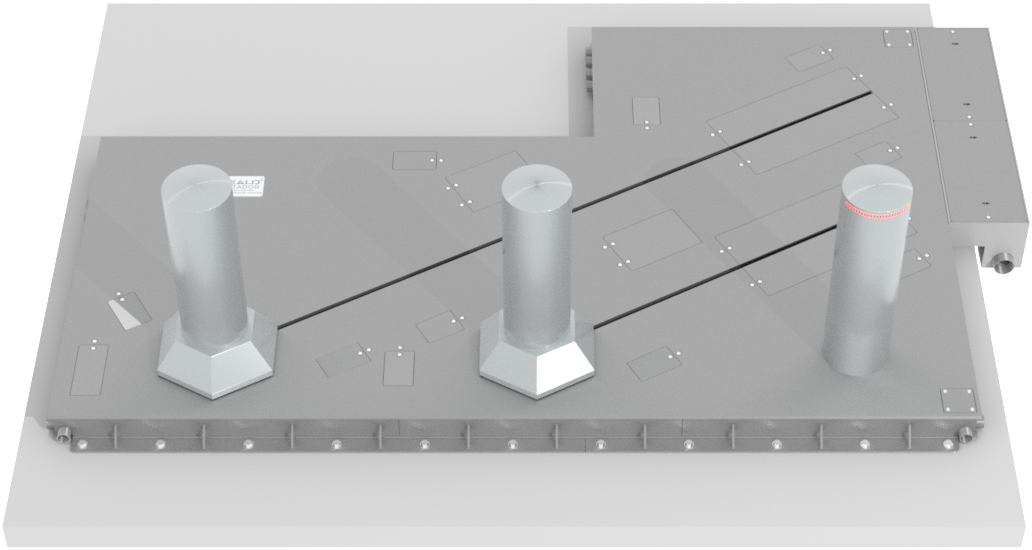

HT3-Mat-EM-3R(2DB)-160
HT3 Matador, Electromechanically Operated, 3 Bollards (2 Dynamic Bollards opening to the right), 155mm steel base depth
Arrangement: 1 Static Bollard with 2 Dynamic Bollards – RH version shown, LH version available. NB: Product is designed to be placed next to another HVM Feature
Typical Use Cases: Used to maximise opening aperture whilst securing an entrance between 2 buildings or an entrance to an area inside the building.
Steel Base Dimensions: 4277mm length x 2940mm depth x 160mm height (+80mm or +110mm if APS is added).
Opening Aperture: 4146mm MAX based on 1200mm spacing between outer Dynamic Bollard and other HVM feature e.g. building, etc. Aperture will be slightly reduced if shrouds are fitted. (Value dependant on choice of covers).
Operating Speed: 12 seconds (6 seconds EFO).
HT3-Mat-EM-4-160
HT3 Matador, Electromechanically Operated, 4 Bollards (2 Dynamic Bollards), 155mm steel base depth
Arrangement: 2 Static Bollards with a 2 central Dynamic Bollards.
Typical Use Cases: Used to secure public spaces in city centres where roads are sporadically closed to create pedestrianised areas. Entrances to prestigious buildings.
Steel Base Dimensions: 5549mm length x 2060mm depth x 160mm height (+80mm or +110mm if APS is added).
Opening Aperture: 4146mm. Aperture will be slightly reduced if shrouds are fitted. (Value dependant on choice of covers).
Operating Speed: 6 seconds (3 seconds EFO).

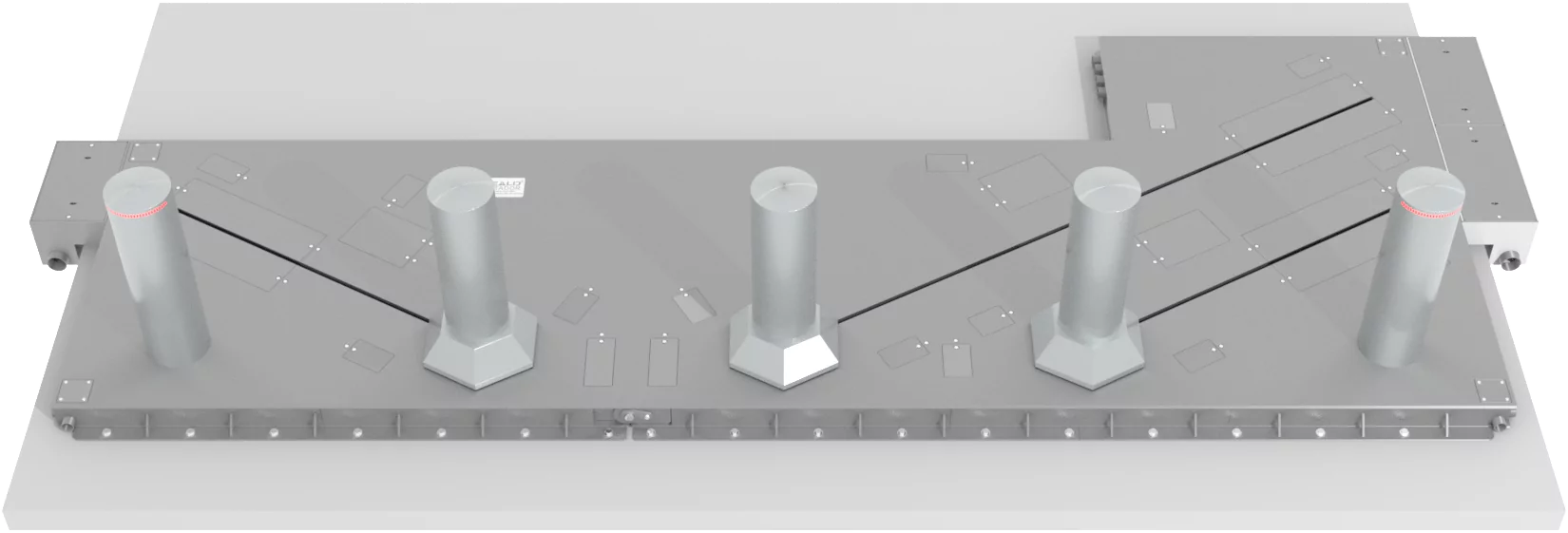

HT3-Mat-EM-5R-160
HT3 Matador, Electromechanically Operated, 5 Bollards (3 Dynamic Bollards 2 opening to the right, 1 to the left), 155mm steel base depth – Available in Left Hand and Manually Operated versions
Arrangement: 2 Static Bollards with 3 central Dynamic Bollards – RH version shown, LH version available.
Typical Use Cases: Used in any location where the approach angle is less than 90° to the bollard line and a wider opening aperture is required.
Steel Base Dimensions: 7022mm length x 2940mm depth x 160mm height (+80mm or +110mm if APS is added).
Opening Aperture: 5619mm. Aperture will be slightly reduced if shrouds are fitted. (Value dependant on choice of covers).
Operating Speed: 12 seconds (6 seconds EFO).

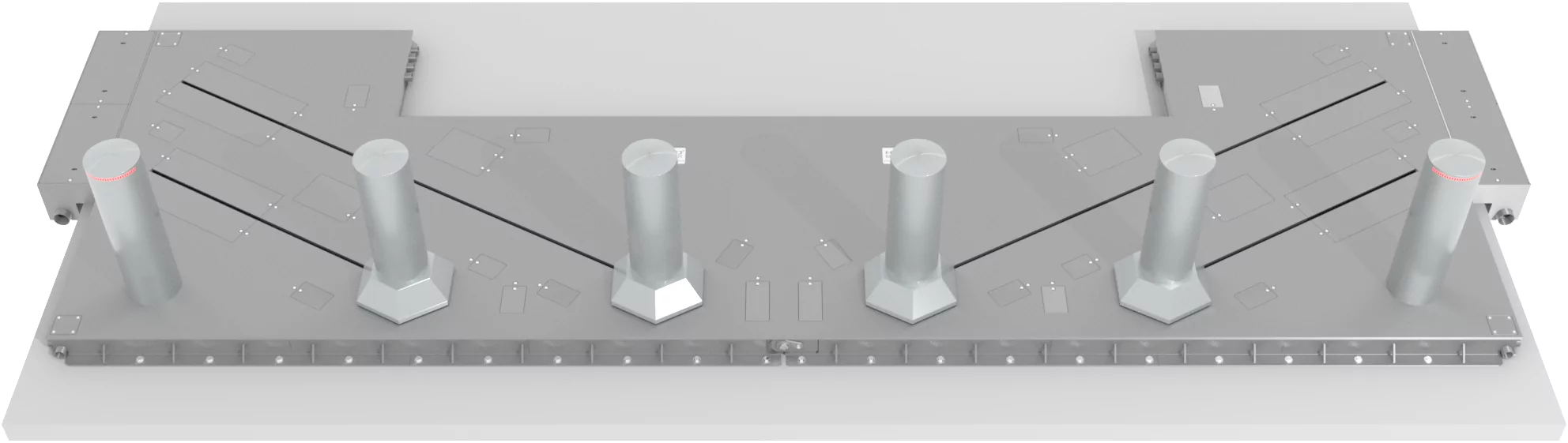

HT3-Mat-EM-6-160
HT3 Matador, Electromechanically Operated, 6 Bollards (4 Dynamic Bollards), 155mm steel base depth – Available as a Manually Operated version
Arrangement: 2 Static Bollards with 4 central Dynamic Bollards.
Typical Use Cases: Used in any location where the widest opening aperture is required (e.g. tight turning circles). Can be supplied with an additional central fixed bollard to provide protection for 2 lanes (e.g. entry and exit lane).
Steel Base Dimensions: 8495mm length x 2940mm depth x 160mm height (+80mm or +110mm if APS is added).
Opening Aperture: 7092mm. Aperture will be slightly reduced if shrouds are fitted. (Value dependant on choice of covers).
Operating Speed: 12 seconds (6 seconds EFO).
