Mantis

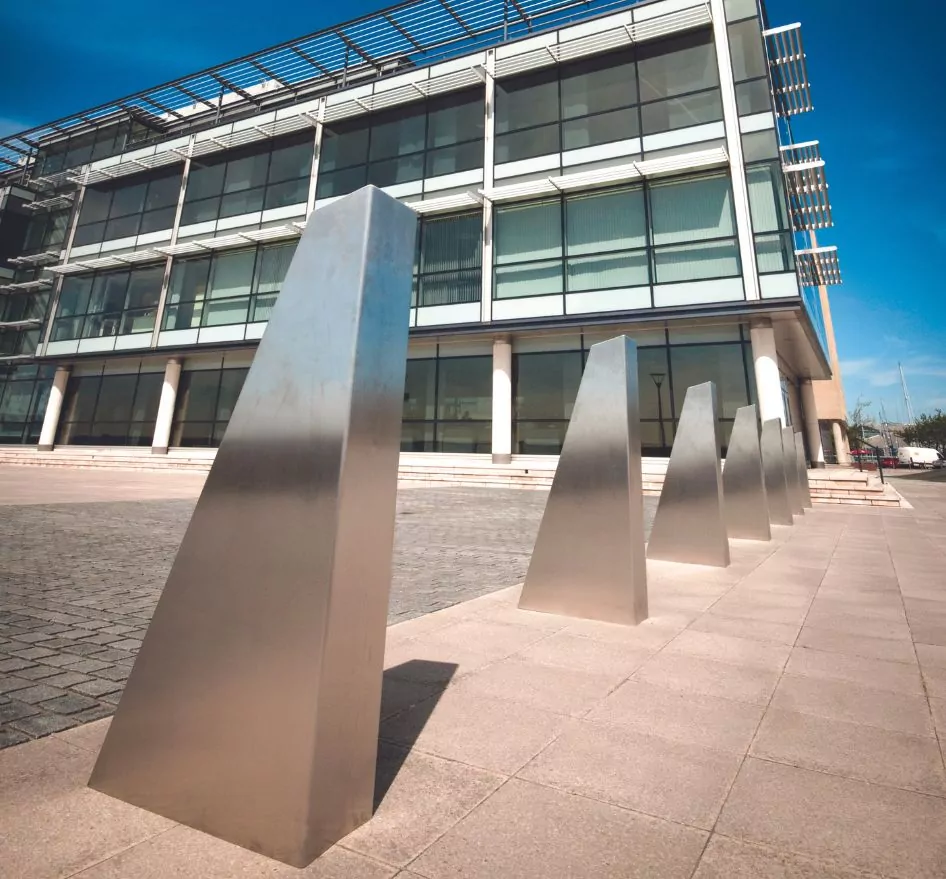

Heald’s Mantis bollard is an incredibly resistant static bollard, tested as a single unit. Offering high security combined with a rapid, low-cost installation, the Mantis is a viable alternative to deep mount static bollards.

Heald’s Mantis Bollards have been triple tested with the Mantis 64 crashed to PAS68 standards. The Mantis 80 is crash tested to IWA-14-1 standards and an array of 3 No. Mantis 80 bollards is also crashed to the IWA-14-1 standards, all passing their respective tests at either 64kph (40mph) or 80kph (50mph).

The sleek and stylish design of the bollards makes them the ideal product for sites where a high level of protection is required but where integration with modern architecture is also a priority. A range of stainless-steel covers in a variety of colours are available to suit any location.

With foundation depths varying between 250mm to 300mm, installation is quick and easy, no pre-cast pit is required nor is any additional rebar meaning the bollard can be installed in less than an hour.

300mm maximum, 250mm minimum excavation requirement.

Hot Dip Galvanised Steel Base for ultimate corrosion resistance.

No pre-cast pit required.

No additional rebar.

Installation in under an hour.

Can be painted any colour desired.

Stainless-steel covers, standard or bespoke designs available.

Can be used in arrays with other products i.e. Vipers, Raptors, Matadors.

Tested as a single unit at both 64kph (40mph) & 80 kph (50mph).

Zero Penetration & Zero dispersion achieved on crash tests.

Bollards continue to provide protection following a crash.

Can act in a flexible array.

  • IWA-14 Tested
  • PAS 68 Tested

Mantis Range

  • Mantis 64

    7.5T @ 64kph (40mph)

    Bollard Height: 1080mm excluding cover, 1130mm including standard cover

    Bollard Width: 190mm excluding cover, 196mm including standard cover

    Foundation Depth: 250mm

    Performance Rating:

    Crash tested as a single unit

    PAS68:2013 Fixed Bollard V/7500[N2]/64/90:0.0/0.0

    Options:

    • Galvanised, primed and painted
    • Stainless-steel covers (various cover options available upon request)

    Mantis 64

    Data Sheet

  • Mantis 80

    7.5T @ 80kph (50mph).

    Bollard Height: 1100mm excluding cover, 1130mm including standard cover

    Bollard Width: 190mm excluding cover, 196mm including standard cover

    Foundation Depth: 300mm

    Performance Rating:

    Crash tested as a single unit and an Array of 3

    Single bollard test – IWA14-1-V/7200[N3C]/80/90:7.5

    Array of 3 test – IWA14-1: 2013 Bollard V/7200[N2A]/80/90:3.5

    Options:

    • Galvanised, primed and painted
    • Stainless-steel covers (various cover options available upon request)

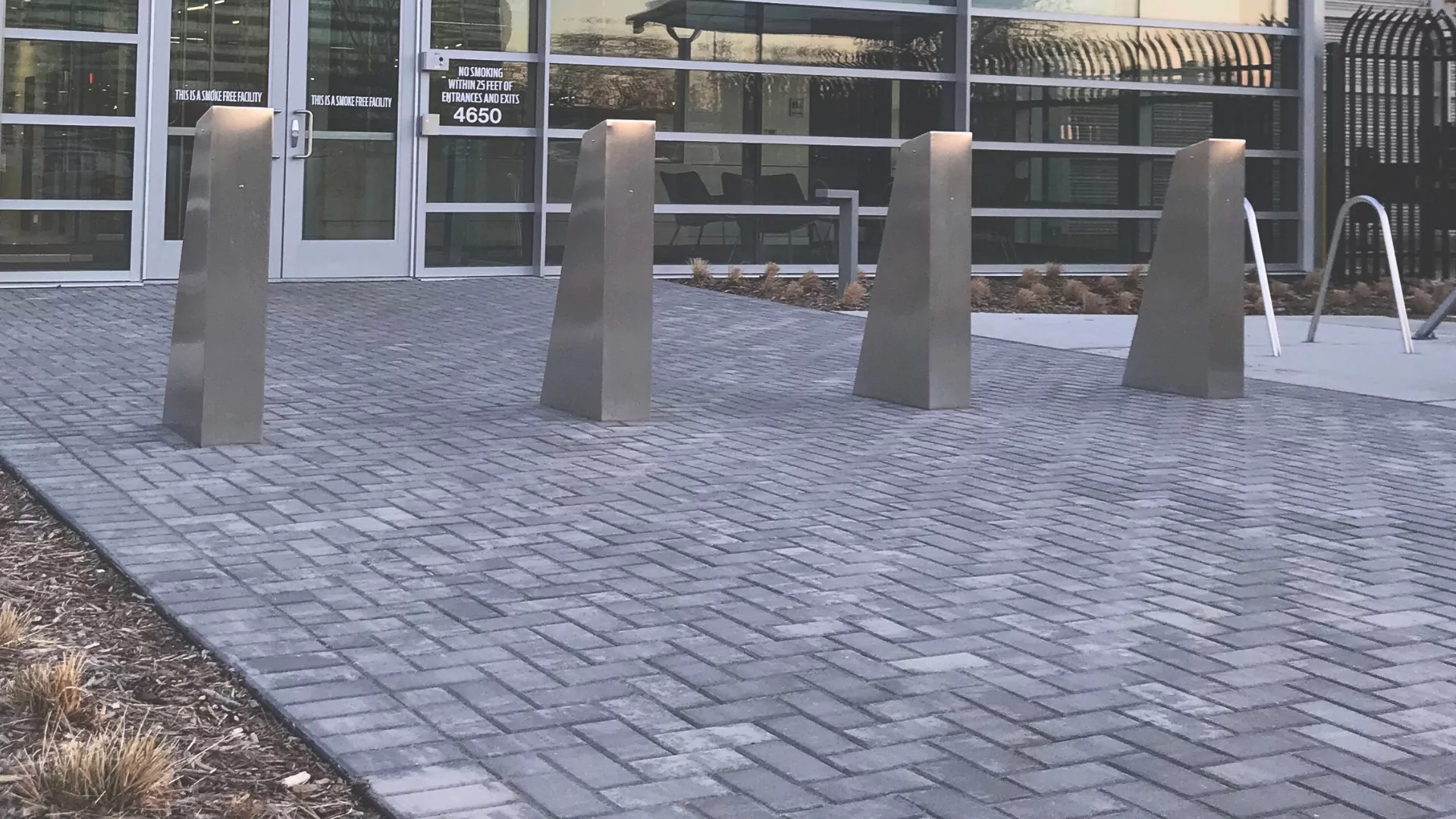

    Heald Mantis Building Install

    Mantis 80

    Data Sheet

Mantis USPs

Previous
Next
1.

Hot Dip Galvanised Steel Base for ultimate corrosion resistance

2.

Tested as a single unit at both 64kph (40mph) & 80kph (50mph)

3.

Zero Penetration & Zero dispersion achieved on crash tests

4.

Bollards continue to provide protection following a crash

5.

Can act in a flexible array

6.

Can be painted any colour desired

7.

Stainless-steel covers, standard or bespoke designs available

8.

Can be used in arrays with other products i.e. Vipers, Raptors, Matadors

9.

300mm maximum, 250mm minimum excavation requirement

10.

No precast pit required

11.

No additional rebar

12.

Installation in under an hour
