Commander

Heald’s Commander Automatic Road Blocker is the world’s only security barrier PAS68 tested to stop a 30-tonne truck travelling at 80kph (50mph). Following the crash test, the road blocker continued to function.

Standing at 1165mm above the ground and presenting an imposing barrier to potential attackers or terrorists, there is simply no alternative if you need the highest level of security.

This is officially the highest impact energy test successfully carried out on a security barrier. It achieved a zero-penetration rating and was fully operational after impact. The Commander is specifically designed for sites where high-profile security is essential. The steel plate has been specially reinforced to evenly distribute any impact force giving unparalleled strength to the blocker.

The automatic road blocker requires an installation depth of approximately 1500mm, but the unique design of its outer box fabrication enables a quick and easy installation with no requirement for a pre-cast pit or additional rebar. This ensures that installation is as simple and efficient as possible.

Raised and lowered by remote push button control, the Commander is also available with Heald’s Hydra control and monitoring system which offers unprecedented levels of interaction through a simple, streamlined interface.

Operated via a single Hydraulic cylinder, providing smooth operation and easier servicing/maintenance with optional high security lock out valves and anti-sever burst valves for extra protection.

Heald design all their products to be long lasting and enable the easy replacement of serviceable components. We offer support and maintenance packages to all customers to ensure that the consistently high levels of service and protection you expect can be maintained by our specialist team of engineers giving you peace of mind that your security investment is in good hands.

  • PAS 68 Tested

Commander

Commander

Heald Commander Roadblocker Install Image
Watch the Commander in action
Watch Video

Commander

  • 30T @ 50mph (80kph)

    HT1 Commander – Common Information

    Roadblocker Raised Height: 1165mm

    Roadblocker Width: Available with a wedge width of 3.0m & 4.0m (4.0m will secure an opening of up to 6.4m)

    Foundation Depth: 1500mm

    Operating speed: 6 seconds standard operation (1.8 seconds approx. EFO)

    Options:

    • Emergency Fast Operation (EFO)
    • Wide range of colours available
    • Hydra Control
    • Large size LED lights
    • Synthetic Oil
    • Lockable inspection cover
    • High security lock-out valves

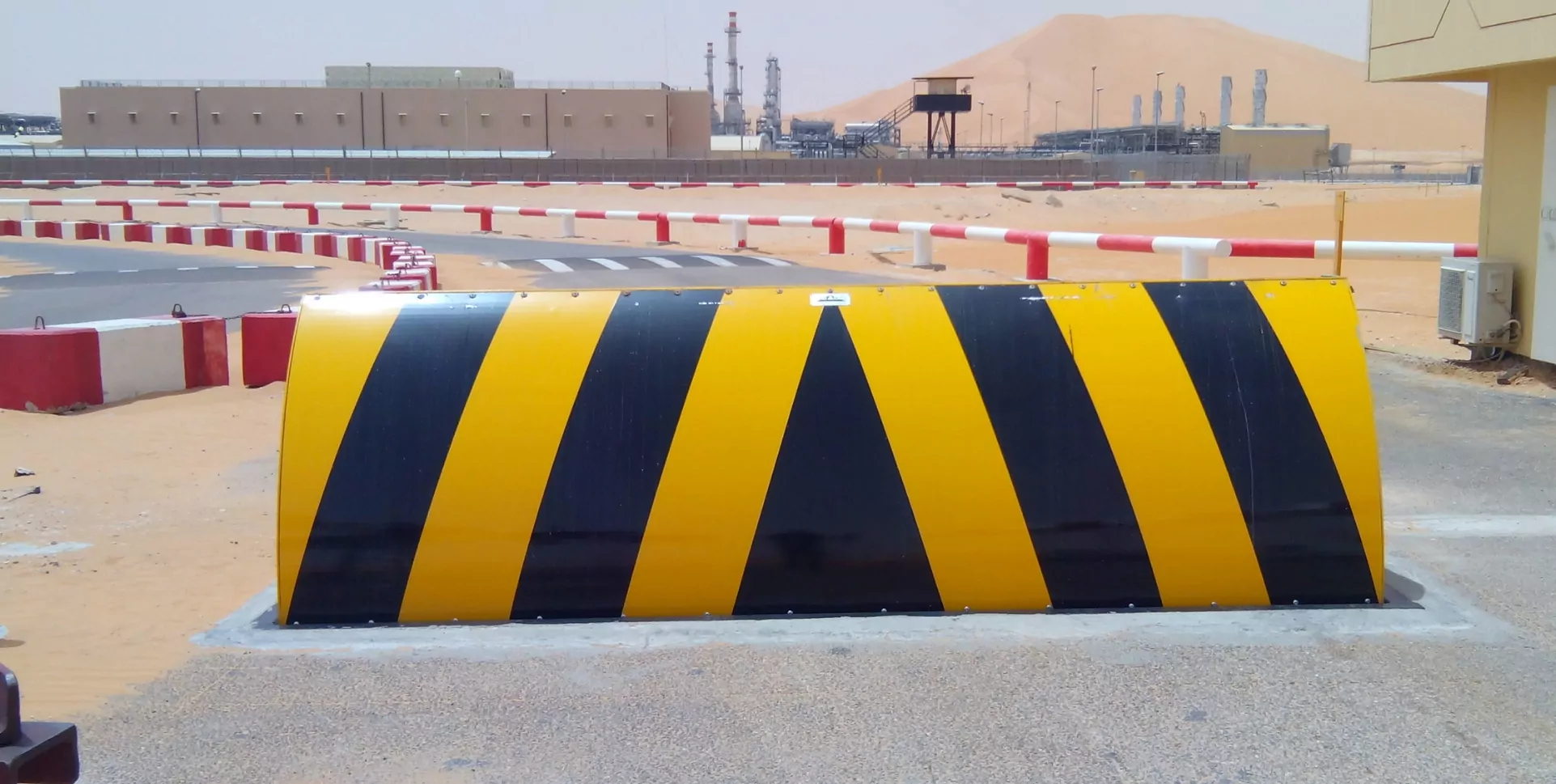

    Image of Commander Roadblocker in front of Critical National Infrastructure

    Commander

    Performance Rating:

    PAS68:V/30000[N3]/80/90: 0.0/6.9

    Data Sheet

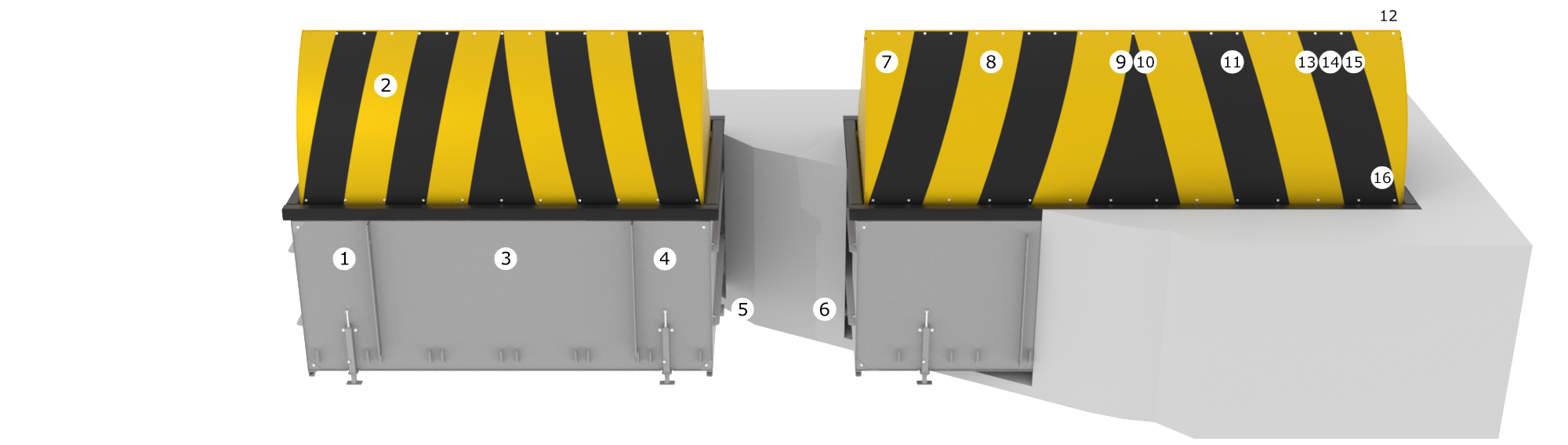

Commander USPs

Previous
Next
1.

Hot Dip Galvanised Steel Base for ultimate corrosion resistance

2.

Steel Construction provides excellent resistance from attack with hand tools

3.

Unique design means no precast pit or additional rebar is required, making installation as simple and efficient as possible

4.

There is also no need for steel reinforcement in the concrete before fitting

5.

Various ducting connection points for flexibility when positioning duct runs

6.

Multiple drainage points to enable easy connection to local surface drainage

7.

Will withstand any road going vehicle (In-house test certified) – 20-tonnes per Axle (120-tonnes for a 6-Axle Truck)

8.

Zero Penetration achieved on crash tests and the system was fully functional afterwards

9.

Highest ever impact energy test successfully carried out on a security barrier

10.

Worlds only security barrier PAS68 tested to stop a 30-tonne truck travelling at 80kph (50mph)

11.

Can be painted to any colour, solid or patterned as desired to suit your site requirements

12.

Can act in a flexible array coupled with Heald’s Hydra system

13.

Very safe operation being fully raised using EFO (Emergency Fast Operation) in 1.8 seconds approx.

14.

99.5% Uptime on major high-risk sites

15.

Easy access for maintenance through top access hatch

16.

Low maintenance requirements due to unique design
