APEX

Heald’s APEX Static Bollard provides a shallow mount solution that is designed to flexibly adapt to a wide variety of locations and topographies due to its innovative modular design. With no modification required, the APEX Bollard can be installed on various gradients and can create angled and curved arrays giving Architects and Installers the flexibility to create the security solution they need without restrictions.

The APEX Bollard was designed to enable simple and fast bollard installation in either a straight line or a curved array. The circular bollard is suitable for a variety of aesthetic finishes and covers, providing a seamless perimeter to both historic and contemporary architecture.

APEX Bollards are easy to install with an excavation depth of only 150mm. The bollards are simply positioned with no pinning required and then secured in place with a concrete back-fill. The surface can be finished with tarmac or pavers to create smooth integration with any landscape.

The APEX has been crash tested in an array of 3 bollards (see crash ratings below) where the vehicle impacted a single bollard, perpendicular to the array to offer maximum protection.

The modular design of the APEX means that the bollard line can be extended to provide protection along the full perimeter and can also directly connect to Heald’s shallow mount Matador system and EVO bollards.

Due to the unique design of the APEX bollard, tight curves and 90-degree angles are achievable without any modification to the bollard base. The bollard is mounted onto the base plate which is elongated to the rear of the product. Due to this shape, there are two maximum achievable radii for the curvature of the bollard line; this can be either towards or away from the protected area.

This describes the curve radius with the bollard line contouring towards the protected area within the perimeter. The minimum achievable radius is 1550mm, whilst maintaining PAS69 recommended 1.2m spacing between bollards.

This describes the curve radius with the bollard line contouring away from the protected area within the perimeter. The minimum achievable radius is 800mm, whilst maintaining PAS69 recommended 1.2m spacing between bollards.

Excavation depth of only 150mm​

Hot Dip Galvanised Steel Base for ultimate corrosion resistance.​

No pre-cast pit or rebar required.​

Crash tested as an array of 3 against a 7.2 tonne truck travelling @ 64Kmph (40mph).​

Steel Construction provides excellent resistance from attack with hand tools.​

Seamlessly joins to other products such as the Matador and Evo Bollards.​

Modular design means protective line can be continued.​

Curved array, tight curves and 90-degree angles are achievable.​

Installable to slopes of 6.85 degrees (12%, 1:8 Gradient).

Can be paved over.​

Optional 100mm Red-Green Traffic Lights or Access Control Interfaces can be integrated within Extended Height Bollard Shrouds.​

Wide range of Bollard Shrouds available – bespoke options available on request.

  • IWA-14 Tested

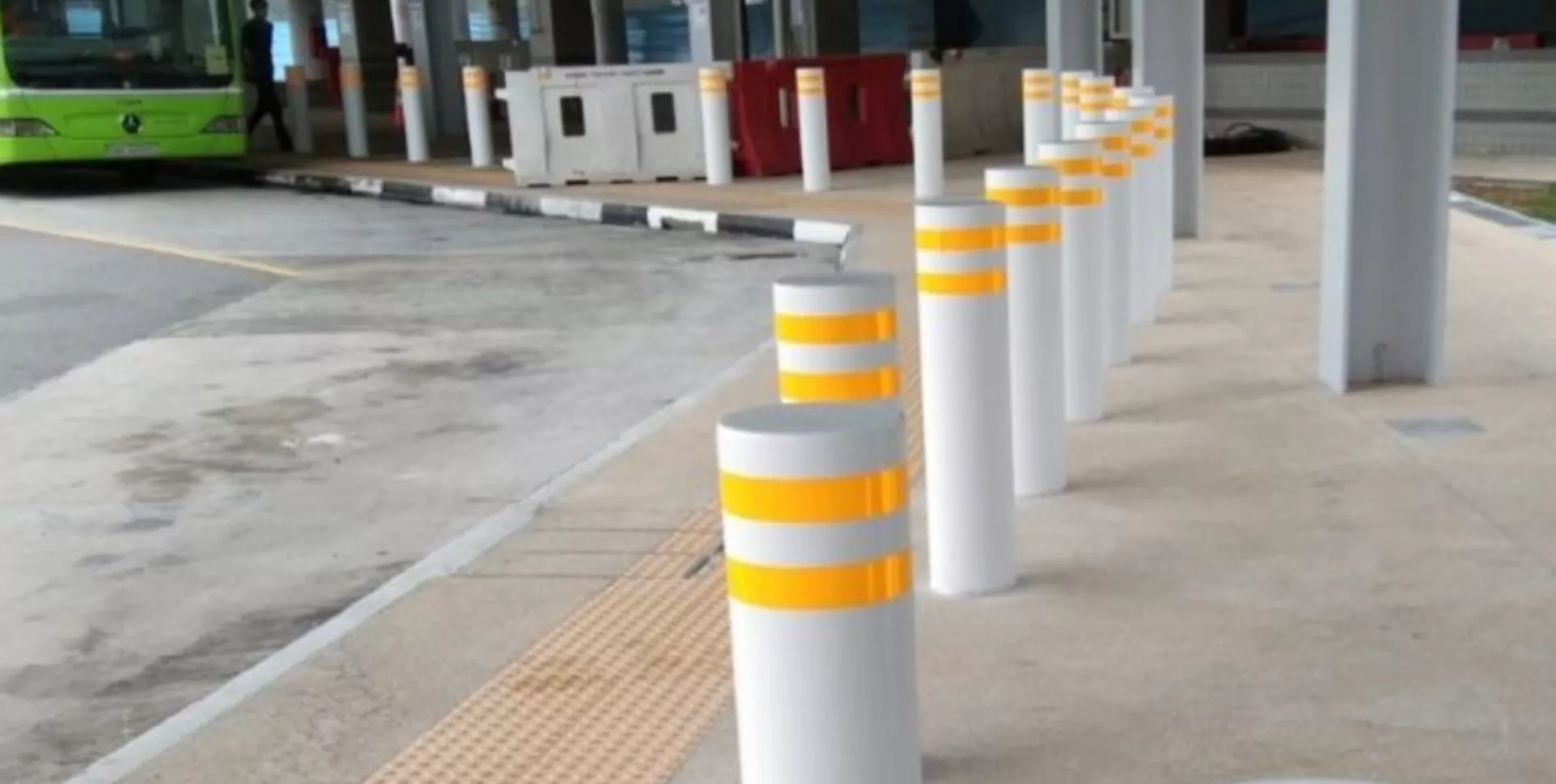

Apex & Evo

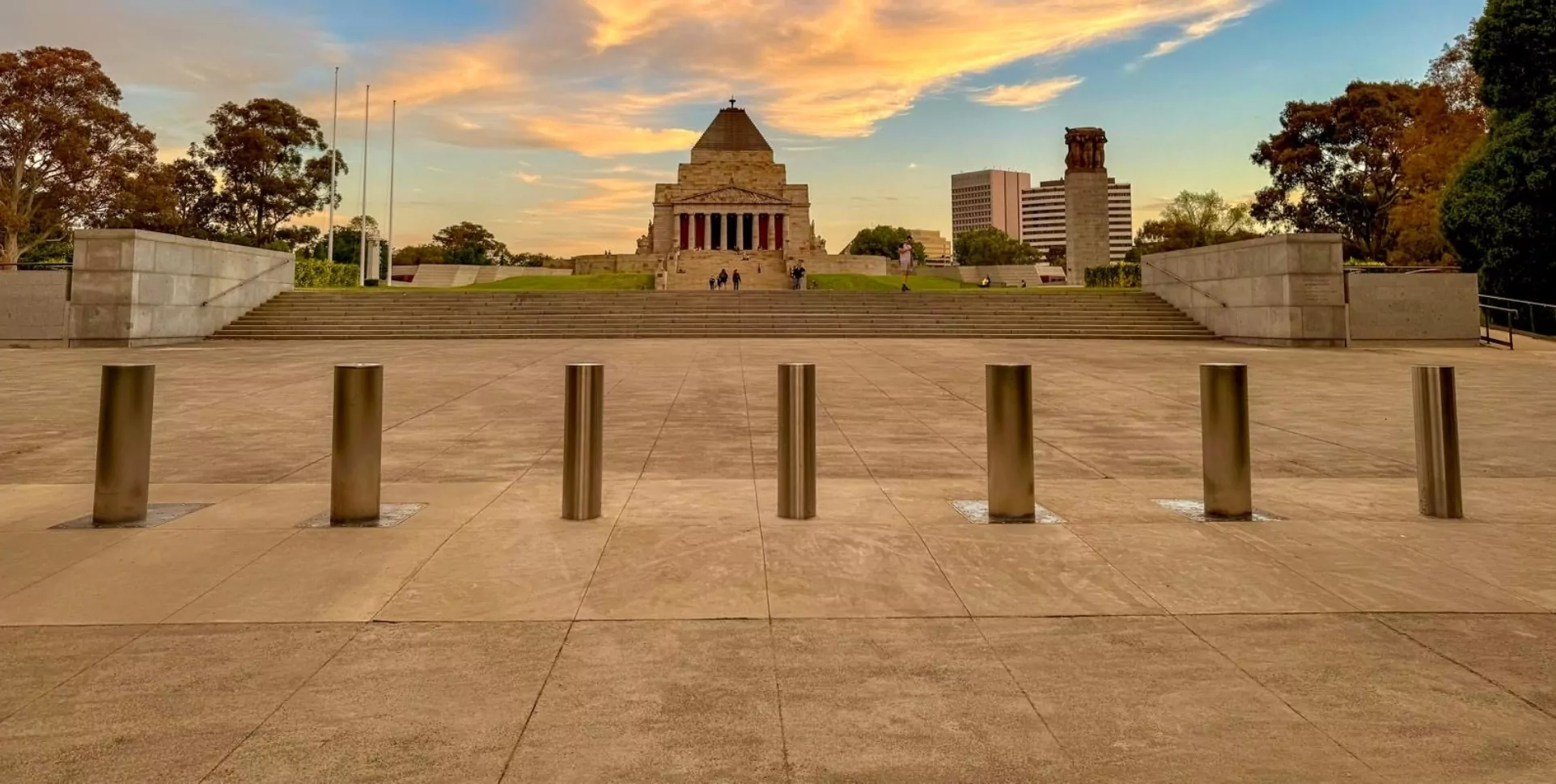

The Shrine, Australia

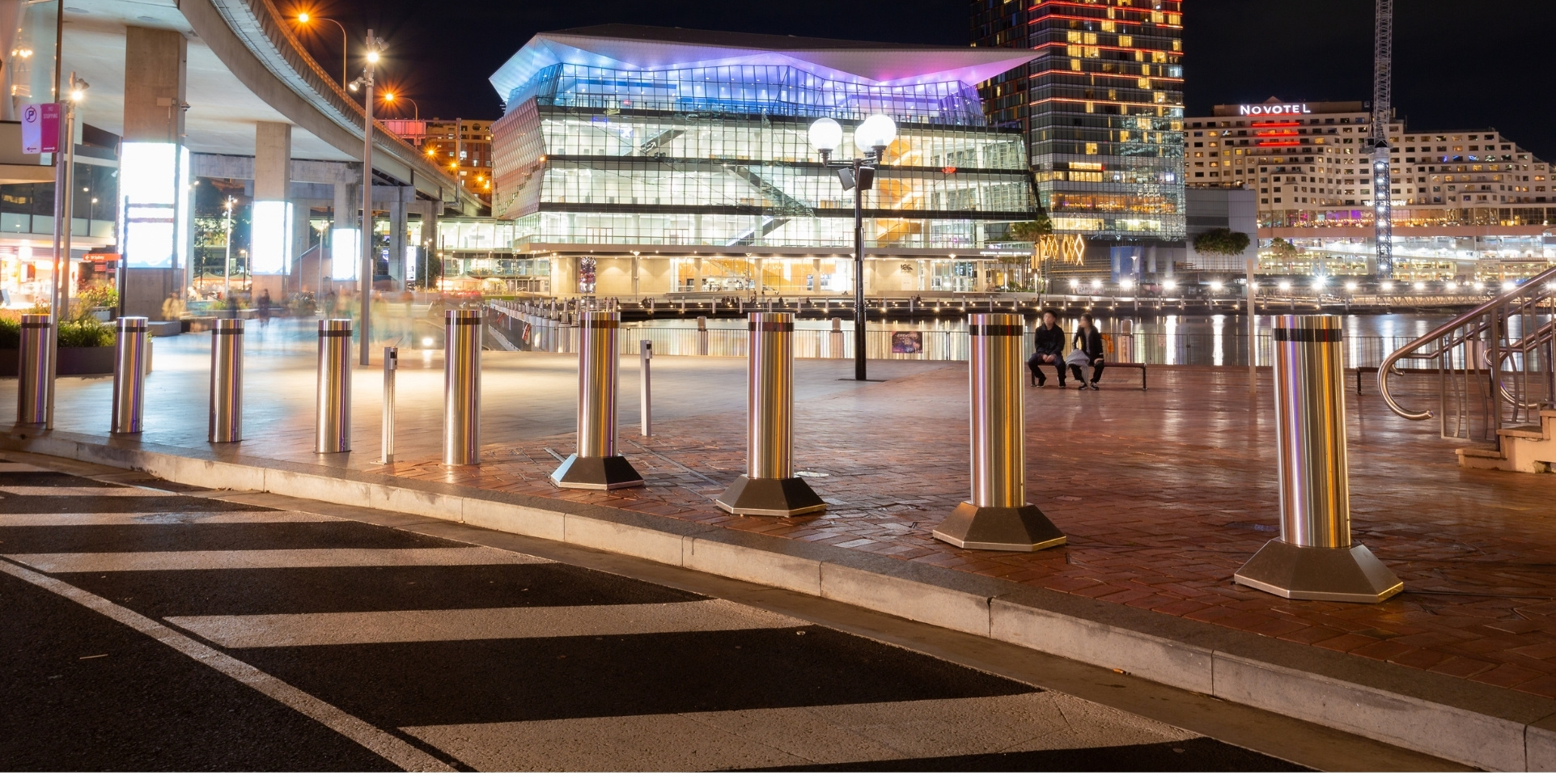

Apex & Matador

Australia

APEX Benefits

  • Ultra Shallow mount – foundation depth from just 150mm
  • Ability to create angled and curved arrays giving architects and installers flexibility
  • Crash tested in an array of three against a 7.2t truck travelling at 40mph (64kph)
  • Wide range of bollard shrouds available with bespoke options on request
  • Seamlessy integrates with products such as the Matador and EVO

APEX Range

  • Apex-64

    7.2T @ 40mph (64kph)

    Bollard Height: 1020mm from FFL (1050mm with Standard Stainless-Steel Covers)

    Bollard Core Diameter: 220mm (256mm with Standard Stainless-Steel Covers)

    Foundation Depth: Starting from 150mm dependant on existing sub-base conditions

    Options:

    • Wide Range of Bollard Shrouds including extended covers with Traffic Lights/Access Control
    • Cranked connecting plate allowing for greater degrees of installation angle compared to the standard connecting plate

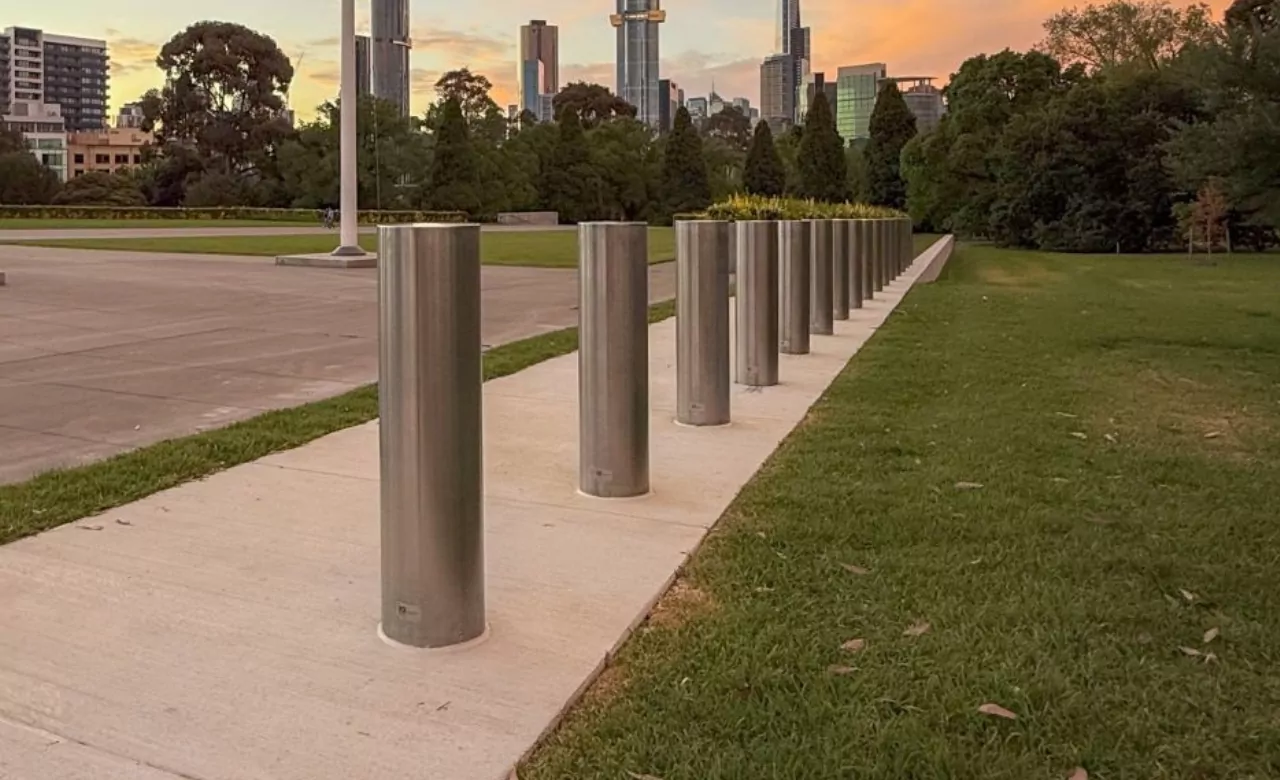

    Removeable Apex

    APEX-64

    Performance Ratings:

    IWA 14-1:2013 Bollard V/7200[N2A]/64/90:3.7 (minimum array of 3)

    Design Numbers: UK design number 6145254

    Data Sheet

  • Apex-80

    Designed for 7.2T @ 50mph (80kph)

    Bollard Height: 1020mm from FFL (1050mm with Standard Stainless-Steel Covers)

    Bollard Core Diameter: 273mm (306mm with Standard Stainless-Steel Covers)

    Foundation Depth: Starting from 150mm dependant on existing sub-base conditions

    Options:

    • Cranked connecting plate allowing for greater degrees of installation angle compared to the standard connecting plate

    APEX-80

    Performance Ratings:

    IWA 14-1:2013 Bollard V/7200[N2A]/64/90:3.7 (minimum array of 3)

    Design Numbers: UK design number 6145254

    Data Sheet

APEX USPs

Previous
Next

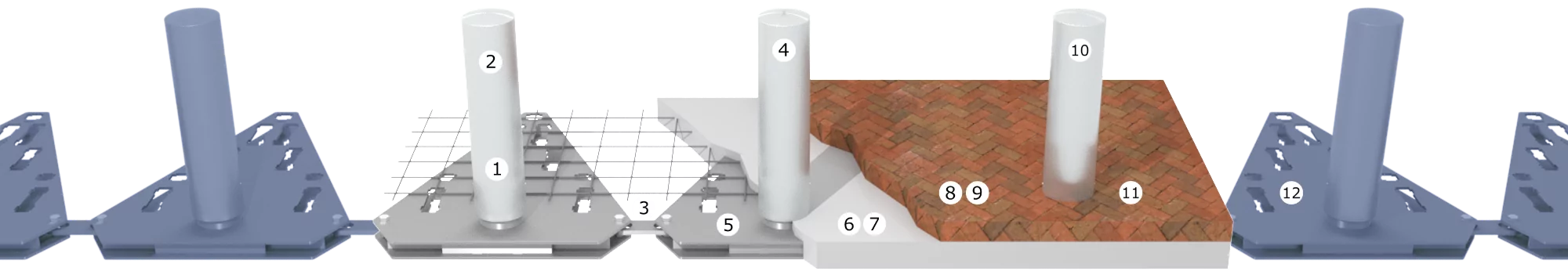

1.

Steel construction provides excellent resistance from attack with hand tools

2.

Crash tested as an array of 3 against a 7.2-tonne truck travelling @ 64kph (40mph)

3.

Modular design means protective line can be easily continued

4.

Wide range of Bollard Shrouds available – bespoke options available on request

5.

Hot Dip Galvanised Steel Base for ultimate corrosion resistance

6.

Excavation depth of only 150mm

7.

No precast pit required

8.

Can be paved over to allow for seamless integration with architectural finishes

9.

Installable to slopes of 6.85 degrees (12%, 1:8 Gradient) with Cranked Joining Plate (greater angles can be achieved through bespoke plate design)

10.

Optional 100mm Red-Green Traffic Lights or Access Control Interfaces can be integrated within Extended Height Bollard Shrouds

11.

Curved array, tight curves and 90-degree angles are achievable

12.

Seamlessly connects to other products such as the Matador and EVO Bollards
